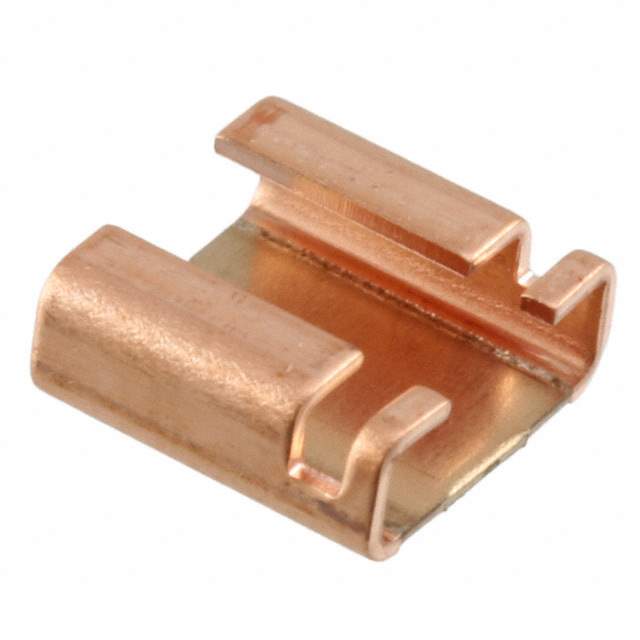

Same model may have multiple batches, images only for reference.

WSLP27261L000FEA

Name: WSLP27261L000FEA
Brand: Vishay
SKU: 990621
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WSLP27261L000FEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 0.001 OHM 1% 7W 2726 / 1 mOhms ±1% 7W Chip Resistor Nonstandard Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet	WSLP27261L000FEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Dale
Series	WSLP2726
Package	Tape & Reel
Resistance	1 mOhms
Tolerance	±1%
Power (Watts)	7W
Composition	Metal Element
Features	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±75ppm/°C
Temperature Range - Operating	-65°C ~ 170°C
Package / Case	Nonstandard
Supplier Device Package	2726
Ratings	AEC-Q200
Dimension	0.272" L x 0.260" W (6.90mm x 6.60mm)
Height - Seated (Max)	0.113" (2.88mm)
Number of Terminations	4
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	541-4375-6,541-4375-2,WSLP27261L000FEA-ND,541-4375-1
Standard Package	1,500
Win Source Part Number	990621-WSLP27261L000FEA
Ultra Librarian 3D Model	Ultra Librarian WSLP27261L000FEA CAD Model

Description

The WSLP27261L000FEA chip resistor is an electronic component used in various applications such as automotive, power management, and current sensing. It is manufactured by Vishay Dale and is available on Win Source.

Applications: Automotive, Power Management, Current Sensing
AEC-Q200 Rated: Yes
Power Rating: 7W
Resistance: 1mOhms
Tolerance: ±1%
Package: Non-Standard
Terminations: 4
Moisture Resistant: Yes
Pulse-withstanding: Yes
