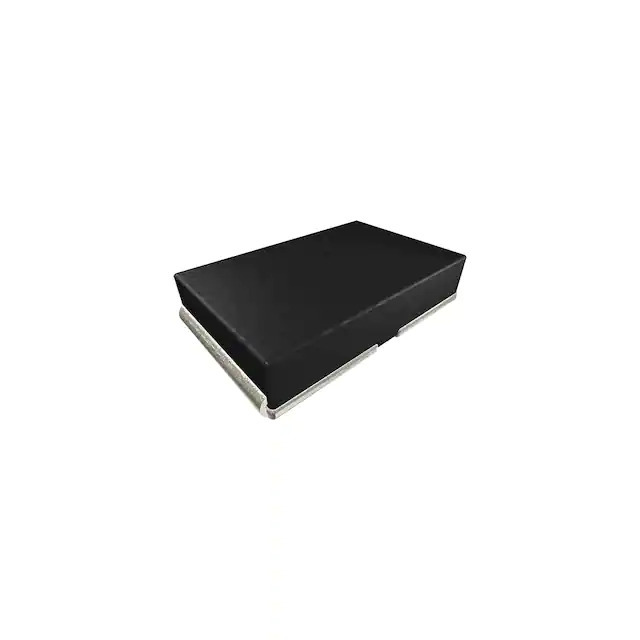

WSHM2818R0150FEA Vishay
Same model may have multiple batches, images only for reference.

WSHM2818R0150FEA

Part No WSHM2818R0150FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.015 OHM 1% 7W 2818
Datasheet
WSHM2818R0150FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSHM2818
Package Tape & Reel
Product Status Active
Resistance 15 mOhms
Tolerance ±1%
Power (Watts) 7W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2818
Ratings AEC-Q200
Size / Dimension 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max) 0.069" (1.75mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375325-WSHM2818R0150FEA
Ultra Librarian 3D Model Ultra Librarian WSHM2818R0150FEA CAD Model

Description

The WSHM2818 series chip resistors from Vishay Dale are surface mount resistors with a resistance of 15 mOhms.

  • Resistance: 15 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Applications: Automotive, current sense, moisture resistance, and pulse withstanding
  • Package/Case: Nonstandard
  • Packaging: Tape and Reel
  • Size: 0.280" L x 0.181" W (7.10mm x 4.60mm)
  • Height: 0.069" (1.75mm)
  • Power: 7W
  • Element Composition: Metal
