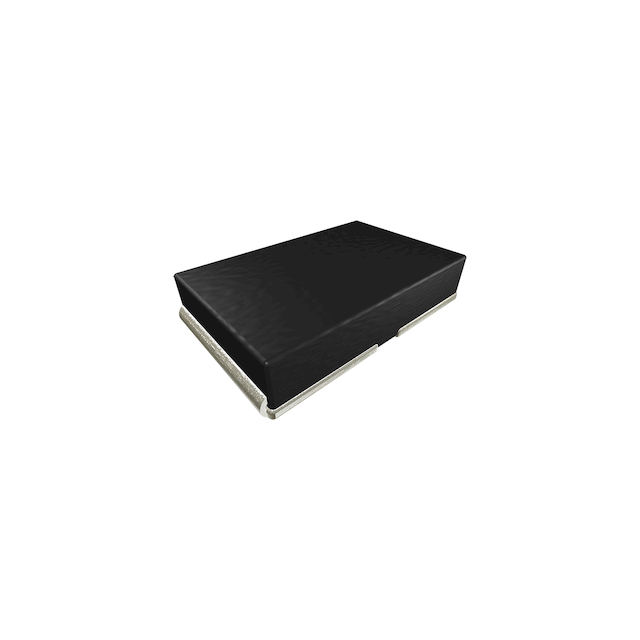

Same model may have multiple batches, images only for reference.

WSHM28181L000FEA

Name: WSHM28181L000FEA
Brand: Vishay
SKU: 1327045
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WSHM28181L000FEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 0.001 OHM 1% 7W 2818 / 1 mOhms ±1% 7W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet	WSHM28181L000FEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	1 mOhms
Tolerance	±1%
Power (Watts)	7W
Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-65°C ~ 170°C
Case / Package	Nonstandard
Supplier Device Package	2818
Ratings	AEC-Q200
Size / Dimension	0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max)	0.069" (1.75mm)
Number of Terminations	2
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	541-2639-1,541-2639-2,541-2639-6
Standard Package	3,500
Win Source Part Number	1327045-WSHM28181L000FEA
Ultra Librarian 3D Model	Ultra Librarian WSHM28181L000FEA CAD Model

Description

The Vishay Dale WSHM28181L000FEA is a chip resistor designed for surface mount applications.

Package: reel - TR
Standard Package: 3,500
Resistance: 1 mOhms
Tolerance: ±1%
Power Rating: 7W
Temperature Coefficient: ±200ppm/°C
AEC-Q200 Rated: Yes
Suitable for Automotive Applications: Yes
Package Type: Nonstandard
Operating Temperature Range: -65°C to 170°C
ROHS3 Compliant: Yes
ECCN: EAR99
