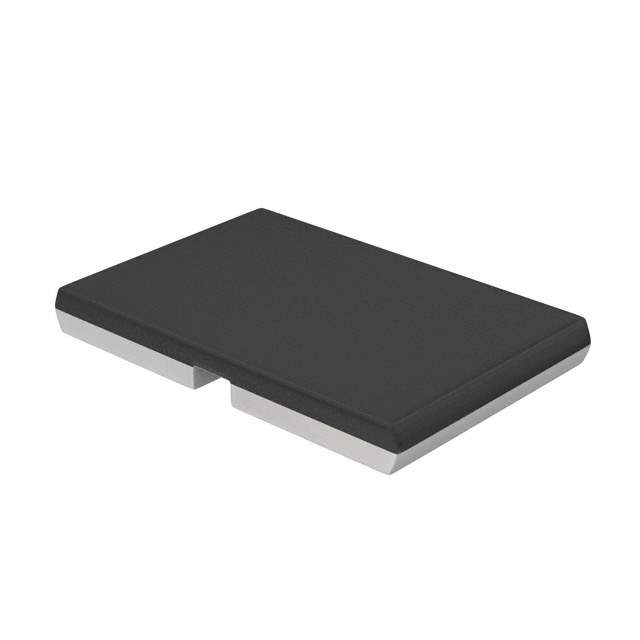

WSH2818R0200FEA Real Image
Same model may have multiple batches, images only for reference.

WSH2818R0200FEA

Part No WSH2818R0200FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 1% 5W 2818
Datasheet
WSH2818R0200FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Features 20 mOhms ±1% 5W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Manufacturer Vishay
Series WSH2818
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -65°C ~ 170°C
Package Nonstandard
Case / Package 2818
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number WSHA-.02TR, WSHA-.02DKR, WSHA-.02CT
Quantity per package 5000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 903370-WSH2818R0200FEA
Ultra Librarian 3D Model Ultra Librarian WSH2818R0200FEA CAD Model

Description

Vishay WSH2818R0200FEA is a chip resistor that belongs to the WSH2818 series.

  • Package: Nonstandard package reel-TR
  • Resistance: 20 mOhms ±1%
  • Power Rating: 5W
  • Application: Resistors
  • Features: Nonstandard automotive AEC-Q200, current sense, moisture-resistant, and pulse-withstanding metal element
  • Supply and Demand Status: Balanced
  • Quantity per Package: 5000
  • ECCN: EAR99
  • HTSUS code: 8533.21.0030
  • Manufacturer: Vishay
  • Other Part Numbers: WSHA-.02TR, WSHA-.02DKR, and WSHA-.02CT
