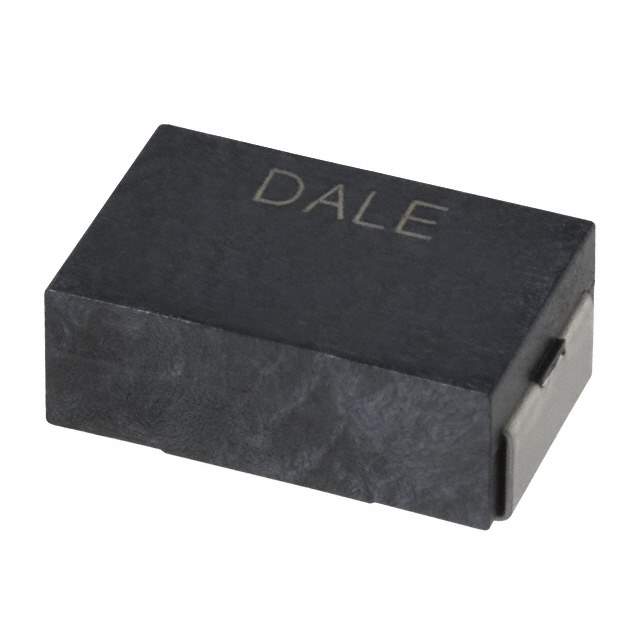

The WSC452710R00FEA is a high-precision current sense resistor manufactured by Vishay. Designed for accurate current measurement in various applications, this resistor provides a low resistance value to minimize power loss and ensure efficient operation. Its robust construction and excellent stability make it suitable for demanding operational environments.

Applications

• Power Supplies
• Motor Control Systems
• Inverters
• Battery Management Systems
• Current Sensing in Automotive Electronics

Features

• Low Resistance Value (10 milliohms)
• High Power Rating
• Excellent Long-Term Stability
• Low Temperature Coefficient of Resistance (TCR)
• AEC-Q200 Qualified (Automotive Applications)
• Surface Mount Package for Easy Assembly

Benefits

• Precise Current Measurement for Improved Control
• Reduced Power Loss for Enhanced Efficiency
• Stable Performance Over a Wide Temperature Range
• Reliable Operation in Harsh Conditions
• Suitable for Automotive Applications

Technical Specifications

The WSC452710R00FEA features a resistance of 0.010 Ohms (10 milliohms) with a tight tolerance. It has a high power rating that allows it to handle significant current loads. The resistor's low TCR ensures stable performance across varying temperatures, contributing to accurate and consistent current readings. Its surface mount design facilitates easy integration into electronic circuits. The typical operating temperature range is from -55°C to +170°C. This resistor is constructed with a metal strip resistive element, providing high precision and stability for demanding applications. Meeting the stringent requirements of the AEC-Q200 standard, it's particularly well-suited for automotive applications.

This current sense resistor is ideal for applications requiring precise current monitoring and control, ensuring system performance and safety. Its robust design and excellent electrical characteristics make it a dependable choice for diverse applications, especially within the automotive sector.
