Same model may have multiple batches, images only for reference.

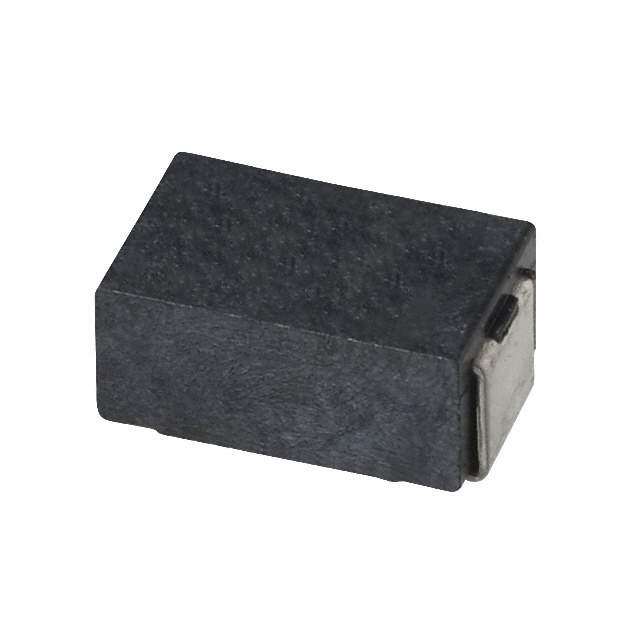

WSC2515100R0FEA Real Image
Same model may have multiple batches, images only for reference.

WSC2515100R0FEA

Part No WSC2515100R0FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 1% 1W 2515
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Wirewound
Features Pulse Withstanding
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Manufacturer Package 2515 J-Lead
Supplier Device Package 2515
Dimension 0.250" L x 0.150" W (6.35mm x 3.81mm)
Height - Seated (Maximum) 0.125" (3.17mm)
Number of Terminations 2
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806948-WSC2515100R0FEA
Ultra Librarian 3D Model Ultra Librarian WSC2515100R0FEA CAD Model

Description

The 806948-WSC2515100R0FEA is a wirewound composition resistor from Vishay Dale.

  • Resistance: 100 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Package: 2515
  • Power Rating: 1W
  • Packaging: reel
  • Manufacturer Pack Quantity: 2,000
  • Package Size: 6.35mm x 3.81mm
  • Terminations: 2
  • Operating Temperature Range: -65°C to 275°C
  • Pulse Events: designed to withstand
  • Applications: power supply and filtering
