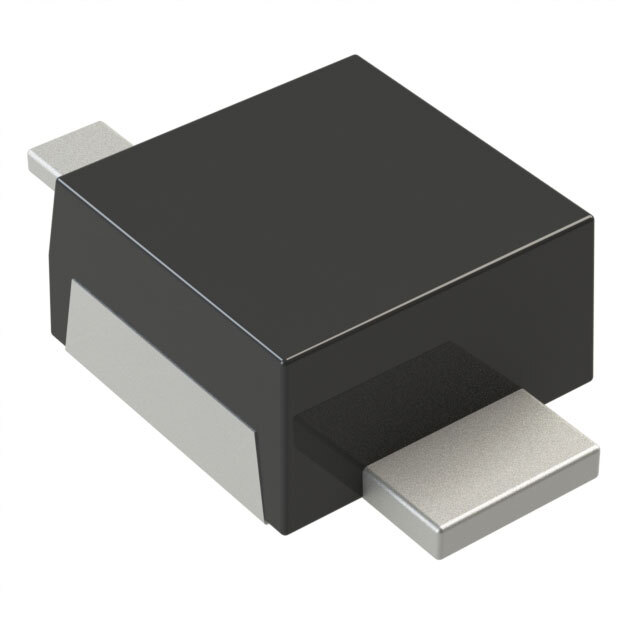

Same model may have multiple batches, images only for reference.
VTVS14ASMF-HM3-08 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

VTVS14ASMF-HM3-08

Part No VTVS14ASMF-HM3-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 13.8VWM 22.2V DO219AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13.8V
Voltage - Breakdown (Min) 15.4V
Voltage - Clamping (Max) @ Ipp 22.2V
Current - Peak Pulse (10/1000µs) 17.16A
Power - Peak Pulse 400W
Power Line Protection No
Capacitance @ Frequency 752pF @ 1MHz
Temperature Range - Operating -55°C ~ 175°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Case / Package DO-219AB
Supplier Device Package DO-219AB (SMF)
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1493310-VTVS14ASMF-HM3-08
Ultra Librarian 3D Model Ultra Librarian VTVS14ASMF-HM3-08 CAD Model

Description

N
