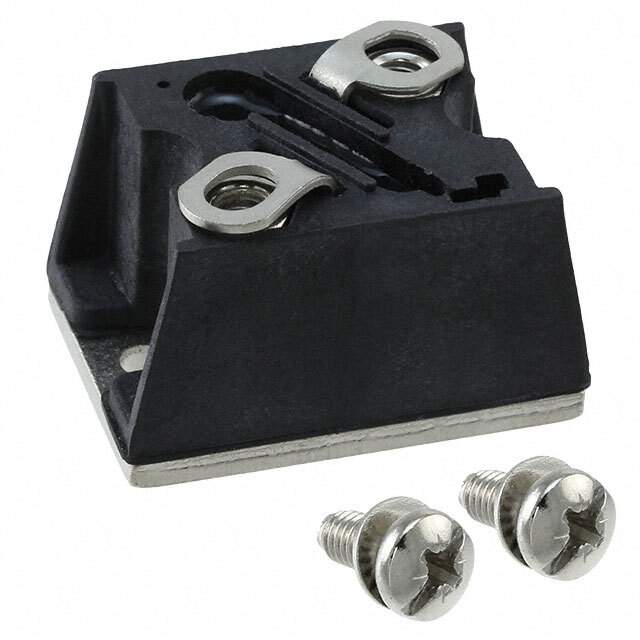

VS-T90RIA120 Real Image
Same model may have multiple batches, images only for reference.

VS-T90RIA120

Part No VS-T90RIA120
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR PHASE CONT 1200V 90A D-55 / Medium Power Phase Control Thyristor
Datasheet
VS-T90RIA120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Structure Single
Number of SCRs, Diodes 1 SCR
Voltage - Off State 1200V
Current - On State (It (AV)) (Maximum) 90A
Current - On State (It (RMS)) (Maximum) 141A
Voltage - Gate Trigger (Vgt) (Maximum) 2.5V
Current - Gate Trigger (Igt) (Maximum) 120mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1780A, 1870A
Current - Hold (Ih) (Maximum) 200mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package D-55 T-Module
Win Source Part Number 796205-VS-T90RIA120
Popularity Medium
Supply and Demand Status Limited
Family Name VS-T90RIA120
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-T90RIA120 CAD Model

Description

The electronic component with Id 734531 is a product manufactured by Vishay Semiconductor Diodes Division.

  • Win Source Part Number: 796205-VS-T90RIA120
  • Packaging: Bulk
  • Operating Temperature Range: -40°C ~ 125°C (TJ)
  • Package: D-55 T-Module
  • Mounting: Chassis Mount
  • Voltage - Off State: 1200V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 1780A, 1870A
  • Family Name: VS-T90RIA120
  • Structure: Single
  • Supply and Demand Status: Limited
