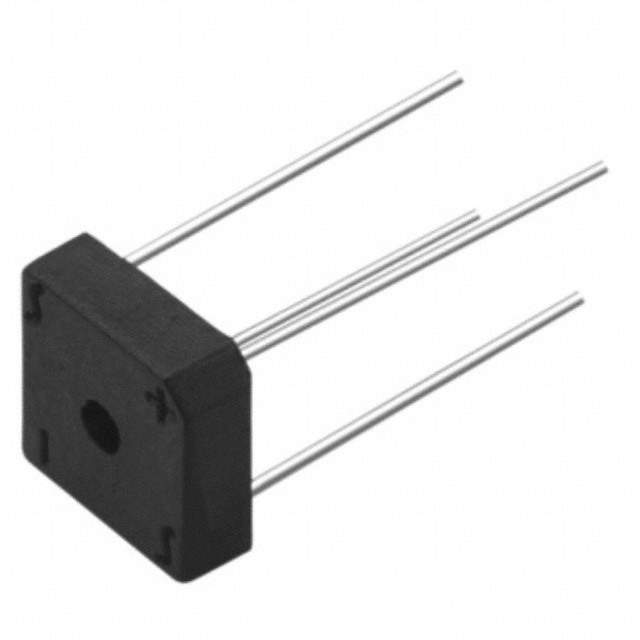

VS-KBPC808PBF

Part No VS-KBPC808PBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description MOD BRIDGE 1PH 8A D-72
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 3A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-72
Manufacturer Package D-72
Win Source Part Number 777984-VS-KBPC808PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-KBPC808PBF CAD Model

Description

VS-KBPC808PBF from Vishay is a bridge rectifier designed for AC-to-DC conversion in power supply and general rectification stages. Components in this category are commonly selected for industrial equipment, consumer appliances, chargers, motor control assemblies, and power conditioning circuits where dependable input rectification is required. Engineers often choose Vishay bridge rectifiers for established brand support, broad application fit, and integration into standard power designs that need a compact rectification solution. For maintenance, repair, and ongoing production, this part may be relevant where designers want a recognized manufacturer and a package style commonly used in mains-powered or transformer-based circuits. Lifecycle status for VS-KBPC808PBF is currently listed as information not available, so design teams should verify availability and long-term support directly with Vishay or authorized distributors before committing to new programs. RoHS compliance information is also not available from the provided data and should be confirmed through the latest datasheet, compliance certificate, or manufacturer declaration.
