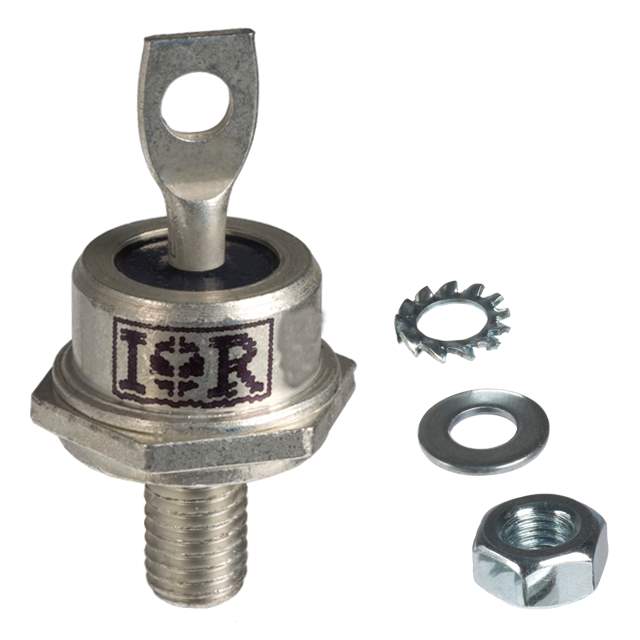

VS-85HF120 Real Image
Same model may have multiple batches, images only for reference.

VS-85HF120

Part No VS-85HF120
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 85A DO203AB
Datasheet
VS-85HF120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 85A
Voltage - Forward (Vf) (Maximum) @ If 1.2V @ 267A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 9mA @ 1200V
Mounting Chassis, Stud Mount
Package DO-203AB, DO-5, Stud
Manufacturer Package DO-203AB
Operating Temperature - Junction -65°C ~ 180°C
Win Source Part Number 766350-VS-85HF120
Popularity Medium
Supply and Demand Status Limited
Family Name VS-85HF120
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-85HF120 CAD Model

Description

Vishay Semiconductor Diodes Division VS-85HF120 is a standard diode type with a current rating of 85A and a voltage rating of 1200V.

  • Speed: Standard Recovery >500ns, > 200mA (Io)
  • Package: DO-203AB, DO-5, Stud
  • Mounting Style: Chassis, Stud Mount
  • Current Reverse Leakage: 9mA @ 1200V
  • Operating Temperature Range: -65°C ~ 180°C
