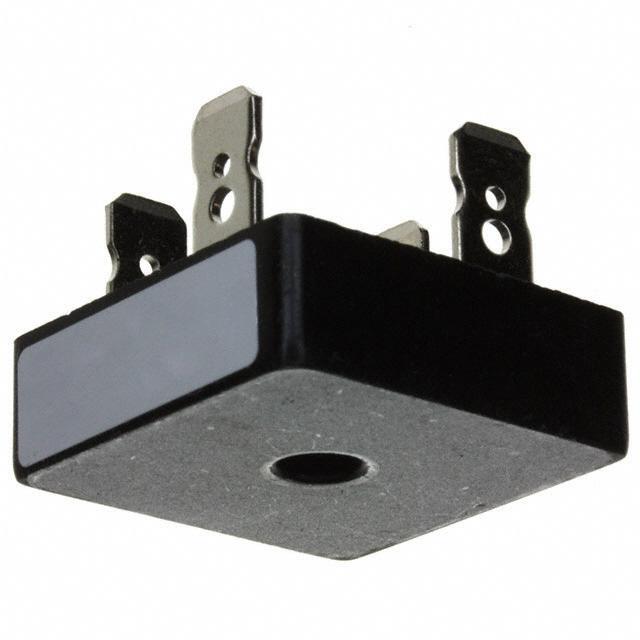

VS-36MB05A Vishay
Same model may have multiple batches, images only for reference.

VS-36MB05A

Part No VS-36MB05A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 50V 35A D-34A
Datasheet
VS-36MB05A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 10μA @ 1600V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, D-34
Manufacturer Package D-34
Win Source Part Number 763408-VS-36MB05A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-36MB05A
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian VS-36MB05A CAD Model

Description

The Vishay Semiconductor Diodes Division 701788 is a standard single-phase diode.

  • Average Rectified Current: 35A
  • Maximum Peak Reverse Voltage: 50V
  • Operating Temperature: -40°C to 150°C
  • Package: D-34 with QC terminals
  • Popularity: Medium
  • Supply and Demand Status: Limited
