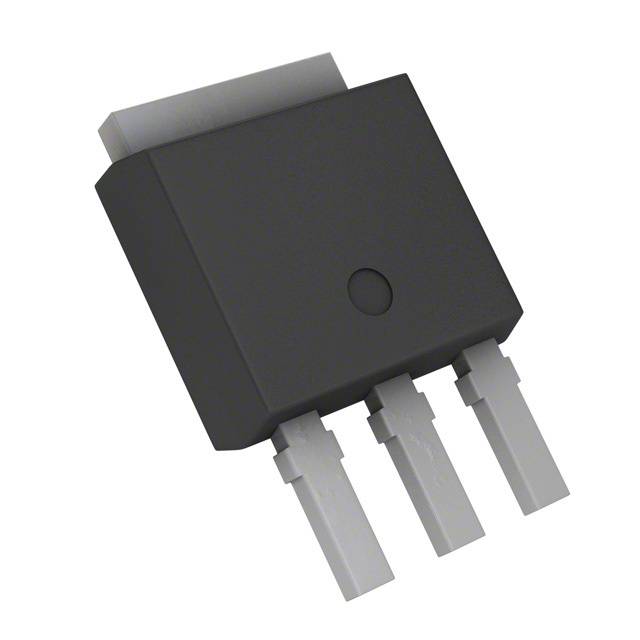

VS-20UT04 Vishay
Same model may have multiple batches, images only for reference.

VS-20UT04

Part No VS-20UT04
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 20A IPAK
Datasheet
VS-20UT04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Maximum) @ If 610mV @ 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 45V
Capacitance @ Vr, F 1900pF @ 5V, 1MHz
Mounting Style Through Hole
Package TO-251-3 Stub Leads, IPak
Manufacturer Package IPAK (TO-251)
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 761773-VS-20UT04
Popularity Medium
Supply and Demand Status Limited
Family Name VS-20UT04
Introduction Date January 13, 2011
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VS-20UT04 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-20UT04 is a fast recovery Schottky diode with a current rating of 20A.

  • Voltage Rating: 45V
  • Capacitance: 1900pF @ 5V, 1MHz
  • Package: TO-251-3 stub leads, IPak
  • Mounting Style: Through hole
  • Operating Temperature Range: -55°C to 150°C
  • Supply/Demand Status: Limited
  • Popularity: Medium
  • EOL Date: Obsolete
