Same model may have multiple batches, images only for reference.

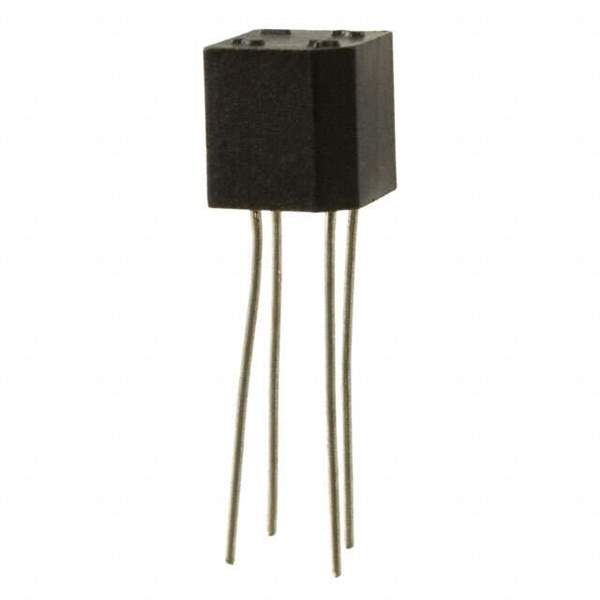

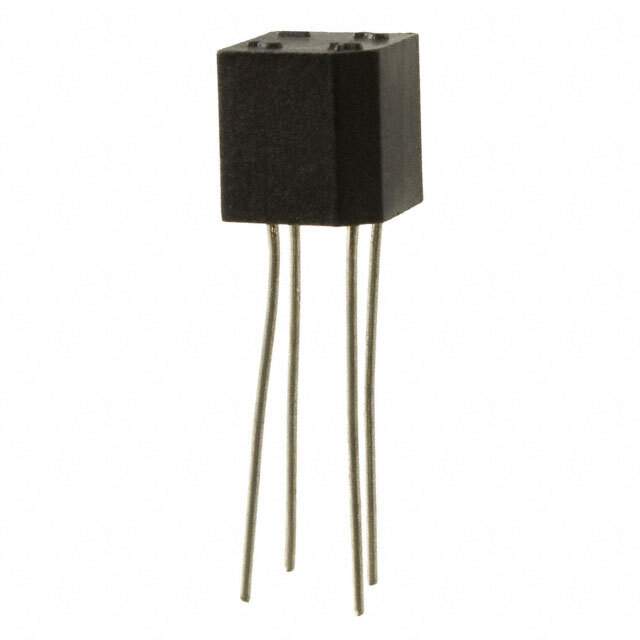

VS-1KAB20E Real Image
Same model may have multiple batches, images only for reference.

VS-1KAB20E

Part No VS-1KAB20E
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 200V 2.0A D-38
Datasheet
VS-1KAB20E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200V
Current - Average Rectified (Io) 1.2A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1.2A
Current - Reverse Leakage @ Vr 10μA @ 200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package D-38
Win Source Part Number 213889-VS-1KAB20E
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian VS-1KAB20E CAD Model

Description

The Vishay VS-1KAB20E is a standard technology single-phase diode that can handle an average rectified current of 1.2A.

  • Manufacturer: Vishay
  • Current - Average Rectified (Io): 1.2A
  • Voltage - Forward (Vf) @ If: 1.1V @ 1.2A
  • Voltage - Peak Reverse (Max): 200V
  • Mounting Type: Through Hole
  • Current - Reverse Leakage @ Vr: 10μA @ 200V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Application: Power Management
  • Popularity: Medium
  • Supply and Demand Status: Limited
