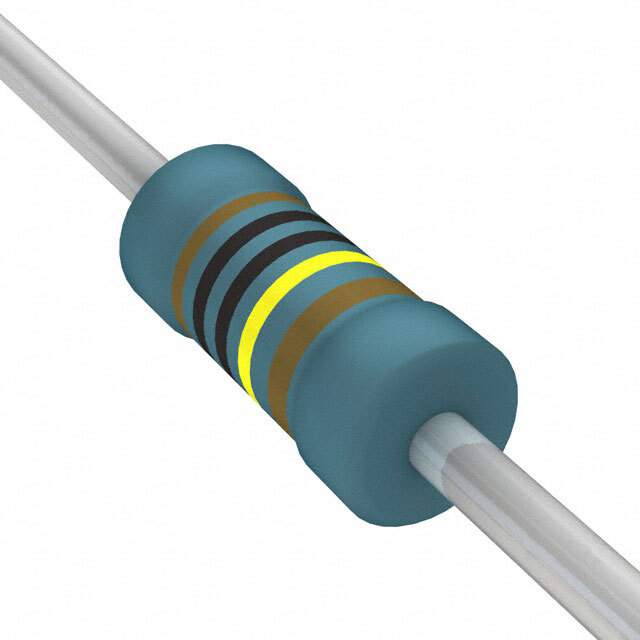

Same model may have multiple batches, images only for reference.

VR25000001004FA100

Name: VR25000001004FA100
Brand: Vishay
SKU: 1006509
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VR25000001004FA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1M OHM 1/4W 1% AXIAL / 1 MOhms ±1% 0.25W, 1/4W Through Hole Resistor Axial Automotive AEC-Q200, High Voltage, Pulse Withstanding Metal Film
Datasheet	VR25000001004FA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	VR25
Package	Cut Tape (CT),Tape & Box (TB)
Resistance	1 mOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Metal Film
Features	Automotive AEC-Q200, High Voltage, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	VR25 1% A1 1M0,BC4415CT,BC4415TB,VR25000001004FA100-ND
Standard Package	1,000
Win Source Part Number	1006509-VR25000001004FA100
Ultra Librarian 3D Model	Ultra Librarian VR25000001004FA100 CAD Model

Alternative Products

Description

The VR25 series from Vishay Beyschlag/Draloric/BC Components is a high voltage, pulse-withstanding resistor.

Series: VR25
Part Number: 1006509-VR25000001004FA100
Compliance: Automotive AEC-Q200
Tolerance: ±1 percent
Temperature Coefficient: ±200ppm/°C
Package: Cut tape and tape & box
Power Rating: 0.25W
Composition: Metal film
Terminations: Two
Resistance: 1mOhms
Operating Temperature: -55°C to 155°C
