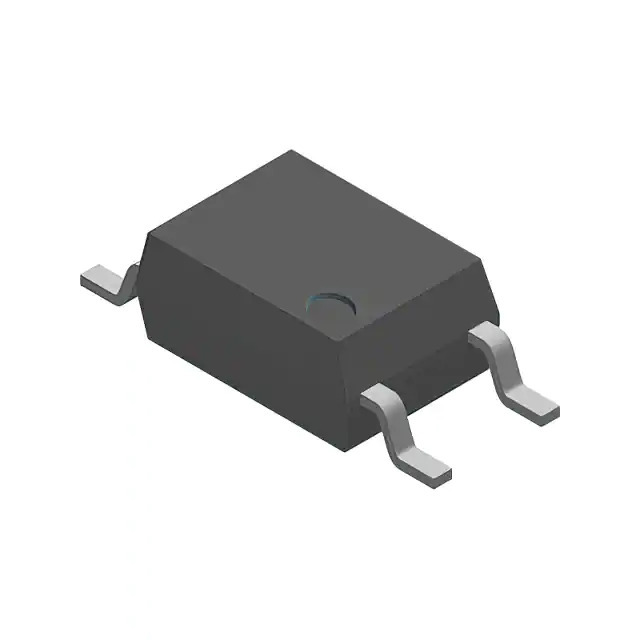

Same model may have multiple batches, images only for reference.
VOMA617A-4X001T Vishay
Same model may have multiple batches, images only for reference.

VOMA617A-4X001T

Part No VOMA617A-4X001T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCOUPLER, PHOTOTRANSISTOR OUT / Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Datasheet
VOMA617A-4X001T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 160% @ 5mA
Current Transfer Ratio (Max) 320% @ 5mA
Turn On / Turn Off Time (Typ) 4.9µs, 3.3µs
Rise / Fall Time (Typ) 2.3µs, 3.2µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.33V
Current - DC Forward (If) (Max) 20 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SOP
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1354878-VOMA617A-4X001T
Ultra Librarian 3D Model Ultra Librarian VOMA617A-4X001T CAD Model

Description

The VOMA617A-4X001T is an optoisolator from Vishay Semiconductor Opto Division.

  • Series: Automotive, AEC-Q101
  • Package: 4-SMD, Gull Wing
  • Output Type: Transistor
  • Maximum Output Voltage: 80V
  • Forward Voltage: 1.33V
  • Current Output: 50mA
  • Voltage Isolation: 3750Vrms
  • Current Transfer Ratio: 160% @ 5mA
  • Turn-on Time: 4.9µs
  • Turn-off Time: 3.3µs
  • Mounting Type: Surface Mount
  • Active: Yes
  • Widely used in: Automotive applications and other systems requiring electrical isolation.
