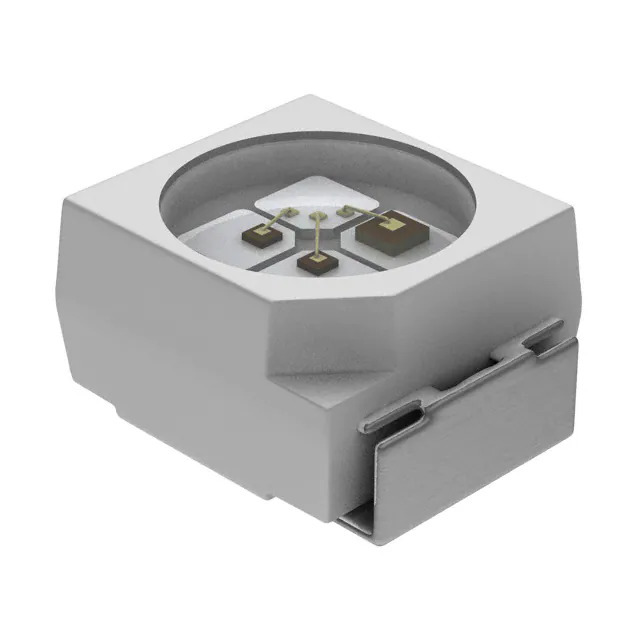

Same model may have multiple batches, images only for reference.
VLMK3105-GS18 Vishay
Same model may have multiple batches, images only for reference.

VLMK3105-GS18

Part No VLMK3105-GS18
Manufacturer Vishay
Catalog LED Indication - Discrete
Description LED RED CLEAR 2PLCC SMD
Datasheet
VLMK3105-GS18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Vishay Semiconductor Opto Division
Series VLM3
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Lens Color -
Lens Transparency Clear
Millicandela Rating 63mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 10mA
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 630nm
Wavelength - Peak 643nm
Features -
Package / Case 2-SMD, J-Lead
Supplier Device Package 2-PLCC
Size / Dimension 3.00mm L x 2.80mm W
Height (Max) 1.85mm
Base Product Number VLMK3105
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1380262-VLMK3105-GS18
Ultra Librarian 3D Model Ultra Librarian VLMK3105-GS18 CAD Model

Description

The VLMK3105-GS18 is an obsolete LED indication discrete component from the VLM3 series by Vishay Semiconductor Opto Division.

  • LED Color: Red
  • Voltage Forward (Vf): 1.9V
  • Millicandela Rating: 63mcd
  • Dominant Wavelength: 630nm
  • Peak Wavelength: 643nm
  • Mounting Type: Surface Mount
  • Package: 2-SMD, J-Lead
  • Size: 3.00mm L x 2.80mm W
  • Height: 1.85mm
  • Viewing Angle: 120°
  • Lens Transparency: Clear
  • REACH Compliance: Compliant
  • ECCN: EAR99
