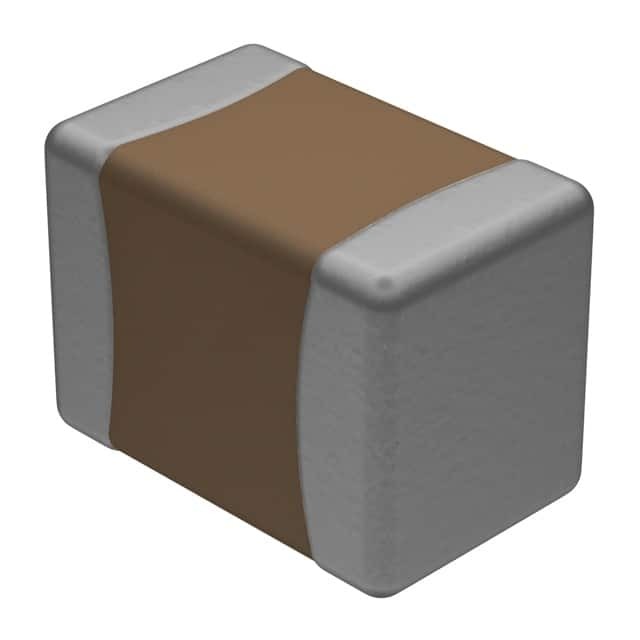

Same model may have multiple batches, images only for reference.
VJ0805Y472KXACW1BC Vishay
Same model may have multiple batches, images only for reference.

VJ0805Y472KXACW1BC

Part No VJ0805Y472KXACW1BC
Manufacturer Vishay
Catalog Ceramic Capacitors
Datasheet
VJ0805Y472KXACW1BC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Vitramon
Series VJ
Package Tape & Reel
Capacitance 4700 pF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.037" (0.95mm)
Base Product Number VJ0805
Other Names BC1290DKR,BC1290DKR,0805B472K500BT,720-1605-1,720-1605-2,225211341472,720-1605-6,2252 113 41472,BC1290CT,BC1290TR,BC1290CTR,BC1290TRR,0805B472K500NT,BC1290TR,BC1290CT
Standard Package 4,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1302796-VJ0805Y472KXACW1BC
Ultra Librarian 3D Model Ultra Librarian VJ0805Y472KXACW1BC CAD Model

Description

This ceramic capacitor is a part of the VJ series and has a Win Source Part Number of 1302796-VJ0805Y472KXACW1BC.

  • Series: VJ
  • Win Source Part Number: 1302796-VJ0805Y472KXACW1BC
  • Package: Tape and Reel
  • Application: General Purpose
  • Capacitance: 4700 pF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Thickness: 0.037 inches (0.95mm)
  • Operating Temperature Range: -55°C to 125°C
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
