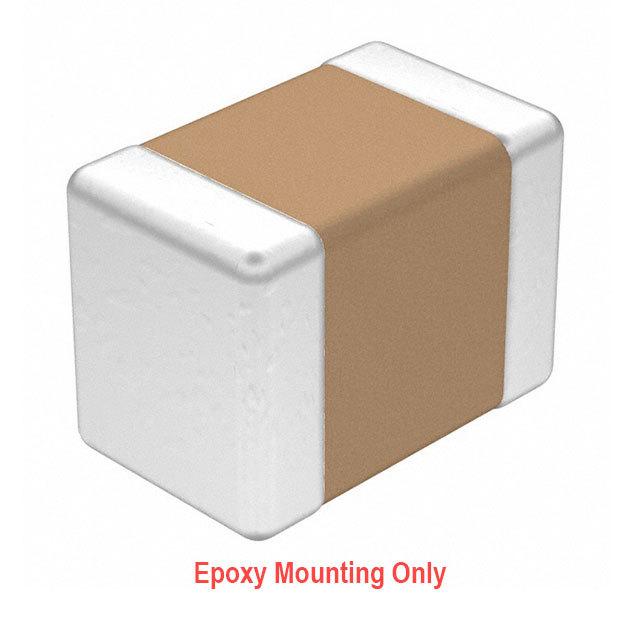

The VJ0805Y223KXPAT is a surface-mount multilayer ceramic capacitor (MLCC) manufactured by Vishay. This capacitor is part of the VJ series, which is recognized for its reliability and consistent performance across various electronic applications. It is designed for automated assembly and ensures stable capacitance over a range of temperatures and voltages.

Applications

• Bypass and decoupling in electronic circuits.
• Filtering in power supplies.
• Use in timing circuits.
• Implementation in high-frequency circuits.
• Suitable for mobile devices.
• Utilized in consumer electronics.

Features

• Designed for surface-mount technology, facilitating automated assembly.
• Multilayer ceramic construction allows for high capacitance in a compact form factor.
• Offers high reliability.
• Maintains stable capacitance under varying temperature and voltage conditions.
• Compliant with RoHS standards.

Benefits

• Reduces the required board space due to its small size.
• Enhances circuit performance through stable capacitance.
• Lowers assembly costs by enabling automated placement.
• Provides long-term reliability, even in demanding applications.
• Environmentally friendly, adhering to RoHS compliance.

Specifications

The VJ0805Y223KXPAT specifications include:

• Case Size: 0805 (2012 Metric).
• Capacitance: 22000 pF (22 nF).
• Voltage Rating: 63 V.
• Temperature Coefficient: X7R.
• Tolerance: ±10%.
• Operating Temperature Range: -55°C to +125°C.
• Termination: Nickel barrier with tin plating.

The X7R dielectric offers a balance between capacitance stability and size, making it suitable for a wide range of general-purpose applications. The ±10% tolerance is adequate for applications where precise capacitance values are not critical.
