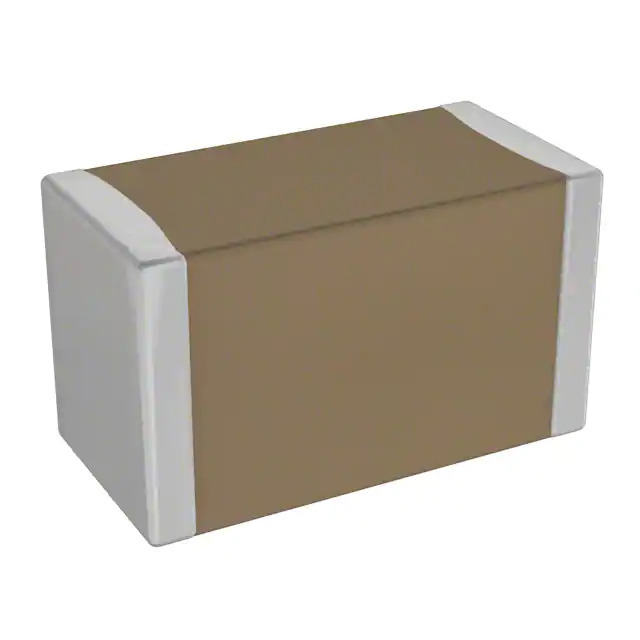

Same model may have multiple batches, images only for reference.
VJ0603A5R6BXJPW1BC Vishay
Same model may have multiple batches, images only for reference.

VJ0603A5R6BXJPW1BC

Part No VJ0603A5R6BXJPW1BC
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 5.6PF 16V C0G/NP0 0603 / 5.6 pF ±0.1pF 16V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Datasheet
VJ0603A5R6BXJPW1BC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Vitramon
Series VJ W1BC
Package Tape & Reel
Product Status Active
Capacitance 5.6 pF
Tolerance ±0.1pF
Voltage - Rated 16V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) -
Thickness (Max) 0.034" (0.87mm)
Lead Spacing -
Lead Style -
Base Product Number VJ0603
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1358716-VJ0603A5R6BXJPW1BC
Ultra Librarian 3D Model Ultra Librarian VJ0603A5R6BXJPW1BC CAD Model

Description

The VJ0603A5R6BXJPW1BC is a ceramic capacitor designed for surface mount applications. It is part of the VJ W1BC series by Vishay Vitramon, a trusted manufacturer of ceramic capacitors.

  • Capacitance: 5.6 pF
  • Tolerance: ±0.1pF
  • Voltage Rating: 16V
  • Package / Case: 0603 (1608 Metric)
  • Size / Dimension: 0.063" in length and 0.031" in width
  • Temperature Coefficient: C0G
  • Packaging: Tape and Reel
  • Mounting Type: Surface Mount
