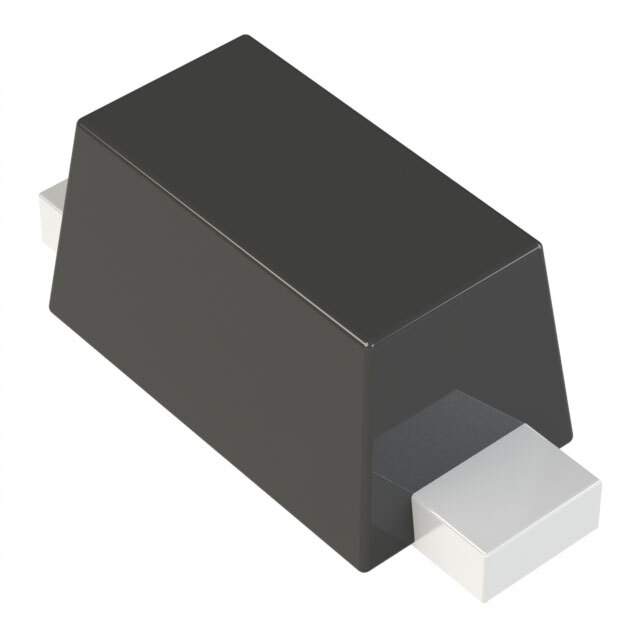

VESD05A1-02V-G-08 Real Image
Same model may have multiple batches, images only for reference.

VESD05A1-02V-G-08

Part No VESD05A1-02V-G-08
Manufacturer Vishay
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Uni-Dir 5V 2-Pin SOD-523 T/R / TVS DIODE 5VWM 12VC SOD523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V
Peak Pulse Current(Ippm) 16A (8/20μs)
Power Dissipation - Pd 192W
Applications General Purpose
Capacitance @ Frequency 130pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 098638-VESD05A1-02V-G-08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name VESD05A1-02V
Introduction Date August 23, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian VESD05A1-02V-G-08 CAD Model

Description

The VESD05A1-02V-G-08 is a Zener type diode from Vishay.

  • Manufacturer: Vishay
  • Package: SOD-523
  • Mounting Type: SMD (SMT)
  • Capacitance: 130pF @ 1MHz
  • Stand-off Voltage: 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 12V
  • Peak Pulse Current: 16A (8/20μs)
  • Power Dissipation: 192W
  • Status: Active
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • ECCN: EAR99
