Same model may have multiple batches, images only for reference.

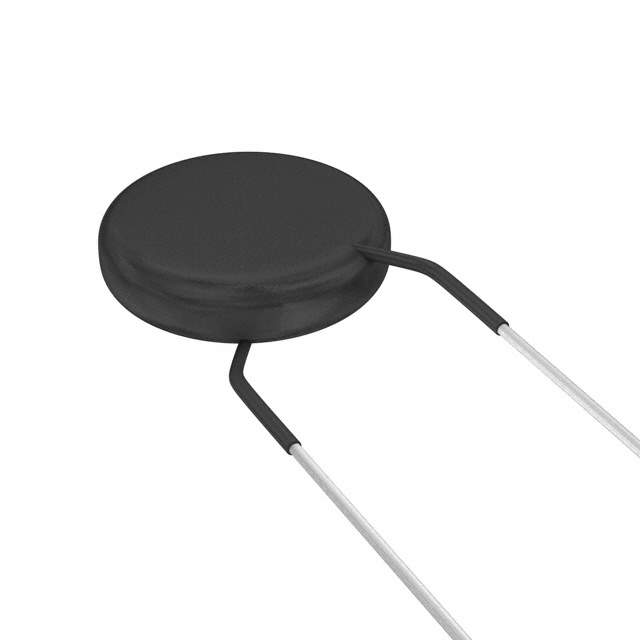

VDRS05A040BSE Real Image
Same model may have multiple batches, images only for reference.

VDRS05A040BSE

Part No VDRS05A040BSE
Manufacturer Vishay
Catalog TVS - Varistors, MOVs
Description VARISTOR 68V 100A DISC 7MM
Datasheet
VDRS05A040BSE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Bulk
Status Active
Varistor Voltage (Min) 61.2V
Varistor Voltage (Typ) 68V
Varistor Voltage (Max) 74.8V
Current - Surge 100A
Energy 1.6J
Number of Circuits 1
Maximum AC Volts 40VAC
Maximum DC Volts 56VDC
Capacitance @ Frequency 460pF @ 1kHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 7mm
Win Source Part Number 1026971-VDRS05A040BSE
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VDRS05A040BSE CAD Model

Description

The Vishay varistor is a through-hole type of component that is used for circuit protection.

  • Capacitance: 460pF @ 1kHz
  • Varistor Voltage Range: 61.2V to 74.8V
  • Surge Current: 100A
  • Maximum AC Voltage: 40VAC
  • Maximum DC Voltage: 56VDC
