Same model may have multiple batches, images only for reference.

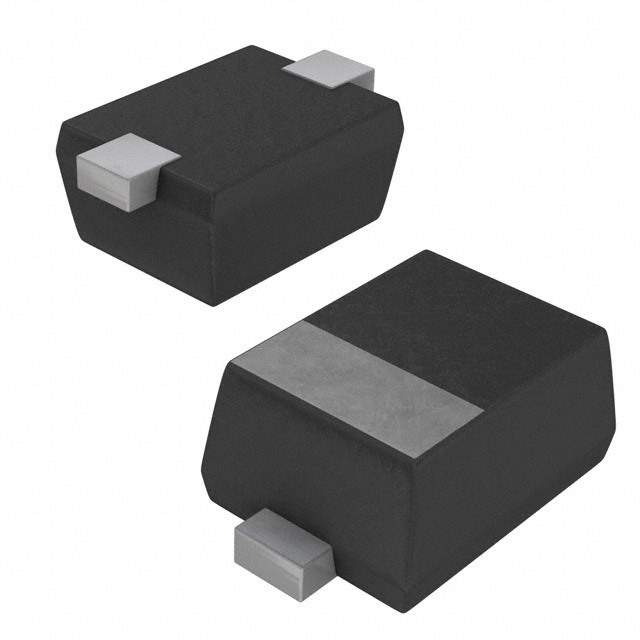

VCUT0714A-02Z-GS08 Real Image
Same model may have multiple batches, images only for reference.

VCUT0714A-02Z-GS08

Part No VCUT0714A-02Z-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 7VWM/14VWM SOD923
Datasheet
VCUT0714A-02Z-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 7V, 14V
Minimum Breakdown Voltage 7.3V, 14.5V
Max Clamping Voltage 17V, 30V
Peak Pulse Current(Ippm) 5A, 2A (8/20μs)
Power Dissipation - Pd 54W, 63W
Applications General Purpose
Capacitance @ Frequency 8pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-923
Win Source Part Number 1116971-VCUT0714A-02Z-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VCUT0714A-02Z-GS08 CAD Model

Description

The VCUT0714A-02Z-GS08 is a bidirectional Zener diode from Vishay.

  • Manufacturer: Vishay
  • Product Name: VCUT0714A-02Z-GS08
  • Type: Bidirectional Zener Diode
  • Standoff Voltage: 7 V and 14 V
  • Minimum Breakdown Voltage: 7.3 V and 14.5 V
  • Applications: General-purpose
  • Capacitance: 8 pF @ 1 MHz
  • Package: SOD-923
  • Status: Obsolete (EOL)
