Same model may have multiple batches, images only for reference.

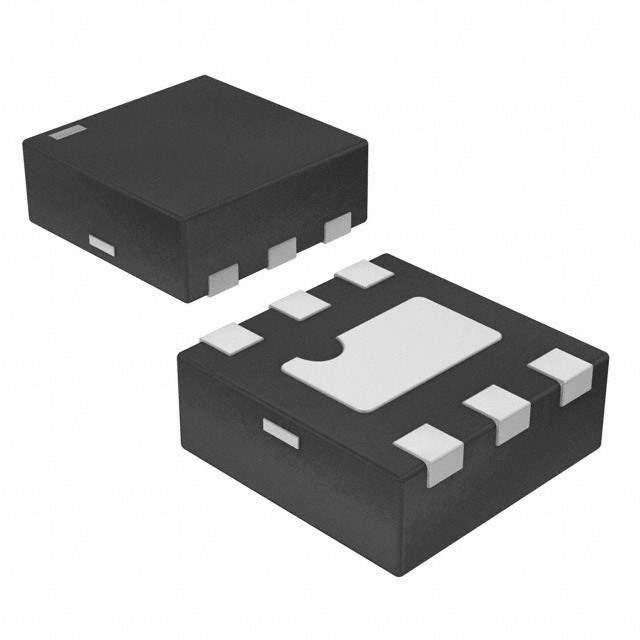

VBUS053CZ-HAF-G-08 Real Image
Same model may have multiple batches, images only for reference.

VBUS053CZ-HAF-G-08

Part No VBUS053CZ-HAF-G-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 18VC 6LLP
Datasheet
VBUS053CZ-HAF-G-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 3
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 18V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 54W
Power Line Protection Yes
Applications USB OTG
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP75-7L
Win Source Part Number 057272-VBUS053CZ-HAF-G-08
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VBUS053CZ-HAF-G-08 CAD Model

Description

The Vishay 057272-VBUS053CZ-HAF-G-08 is a steering (rail to rail) type transient voltage suppressor (TVS) diode that is designed for USB on-the-go (OTG) applications.

  • Channels: Three unidirectional channels
  • Protection: Power line protection
  • Stand-off Voltage: 5.5V (max)
  • Minimum Breakdown Voltage: 6.5V
  • Maximum Clamping Voltage: 18V
  • Peak Pulse Current: 3A (8/20μs)
  • Package: LLP75-7L
  • Product Status: Active
  • Popularity Rating: Medium
  • Supply and Demand Status: Balanced
