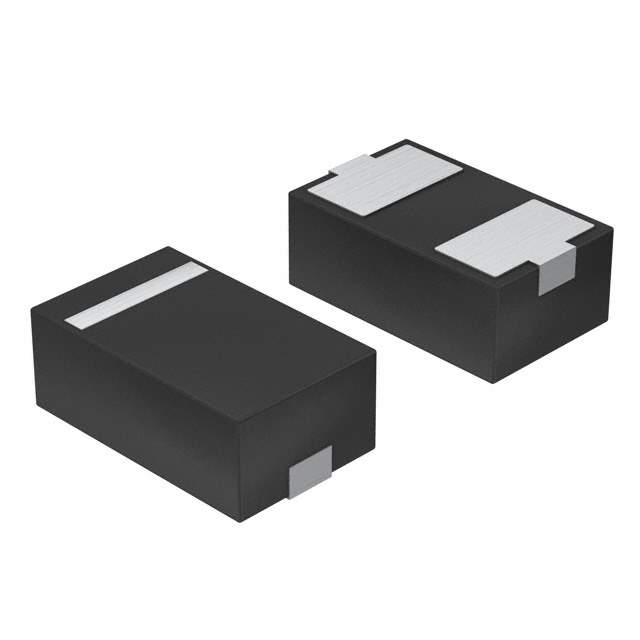

Same model may have multiple batches, images only for reference.

VBUS051BD-HD1-GS08

Name: VBUS051BD-HD1-GS08
Brand: Vishay
SKU: 397487
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VBUS051BD-HD1-GS08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	ESD Suppressor Diode TVS Uni-Dir 5V 2-Pin LLP T/R / TVS DIODE 5VWM 16VC LLP10062L
Datasheet	VBUS051BD-HD1-GS08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6.9V
Max Clamping Voltage	16V
Peak Pulse Current(Ippm)	3A (8/20μs)
Power Dissipation - Pd	45W
Applications	General Purpose
Capacitance @ Frequency	0.9pF @ 1MHz
Temperature Range - Operating	-55°C to 145°C (TJ)
Mounting	SMD (SMT)
Case / Package	LLP1006-2L
Win Source Part Number	036224-VBUS051BD-HD1-GS08
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Industrial
Family Name	VBUS051BD-HD1
Introduction Date	November 04, 2007
ECCN	EAR99
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian VBUS051BD-HD1-GS08 CAD Model

Alternative Products

Description

The Vishay zener diode is a semiconductor device designed for use in circuit protection applications.

Mounting Technology: SMD (SMT)
Capacitance @ frequency: 0.9pF @ 1MHz
Unidirectional/Bidirectional: Unidirectional
Stand-off Voltage (Vwm): 5V (Max)
Minimum Breakdown Voltage: 6.9V
Max Clamping Voltage: 16V
Peak Pulse Current(Ippm): 3A (8/20μs)
Power Dissipation - Pd: 45W
Case/Package: LLP1006-2L
Temperature Range: -55°C to 145°C (TJ)
Product Status: Active
Popularity: High
