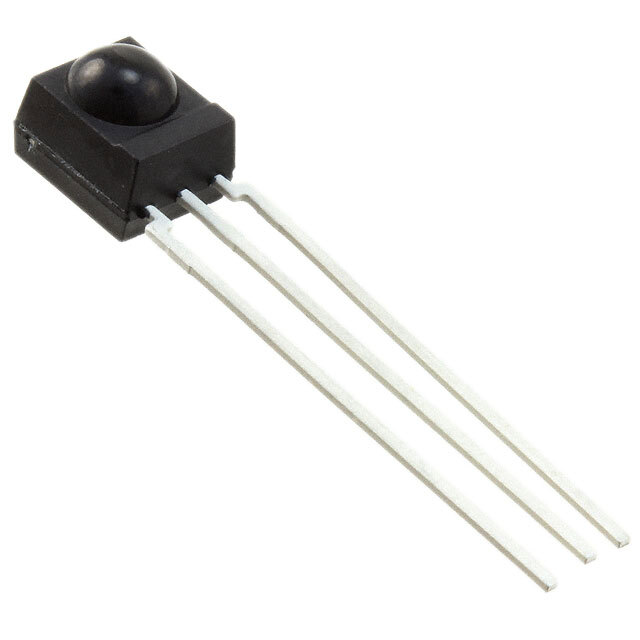

TSOP34138JH1 Vishay
Same model may have multiple batches, images only for reference.

TSOP34138JH1

Part No TSOP34138JH1
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description 3V PH.MODULE 38KHZ S.VIEW
Datasheet
TSOP34138JH1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors,Transducers
Family Optical Sensors - Photo Detectors - Remote Receiver
Manufacturer Vishay-Semiconductor-Opto-Division
Sensing Distance 45m
B.P.F. Center Frequency 38.0kHz
Operating Supply Voltage 2.5 V ~ 5.5 V
Current - Supply 350μA
Orientation Side View
Mounting Style Through Hole
Operating Temperature Range -25°C ~ 85°C (TA)
Win Source Part Number 004612-TSOP34138JH1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP34138JH1 CAD Model

Description

The Vishay-Semiconductor-Opto-Division TSOP34138JH1 is an optical sensor photo detector remote receiver that operates in the temperature range of -25°C to 85°C.

  • Orientation: side view
  • Sensing Distance: 45m
  • Mounting Style: through-hole
  • Operating Supply Voltage: 2.5 V to 5.5 V
  • B.P.F. Center Frequency: 38.0kHz
  • Suitable For: a variety of applications
  • Supply and Demand Status: limited
