Same model may have multiple batches, images only for reference.

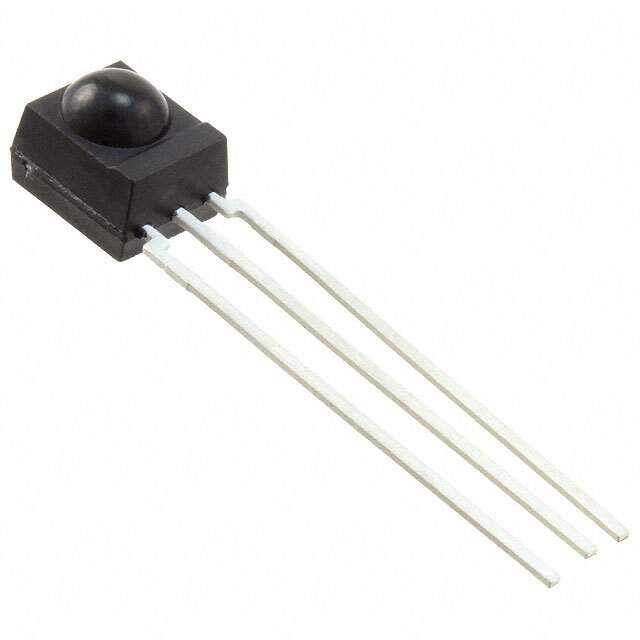

TSOP32236 Real Image
Same model may have multiple batches, images only for reference.

TSOP32236

Part No TSOP32236
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description 3V PH.MODULE 36KHZ S.VIEW
Datasheet
TSOP32236 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 350μA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057148-TSOP32236
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP32236 CAD Model

Description

The Vishay TSOP32236 is a sensor/transducer component suitable for use in through-hole mounting applications.

  • Sensing Distance: 45m
  • Orientation: side view
  • Operating Temperature Range: -25°C to 85°C
  • Supply Voltage: 2.5 V to 5.5 V
  • Operating Supply Current: 350μA
  • Carrier Frequency: 36.0kHz
  • Supply and Demand Status: limited
