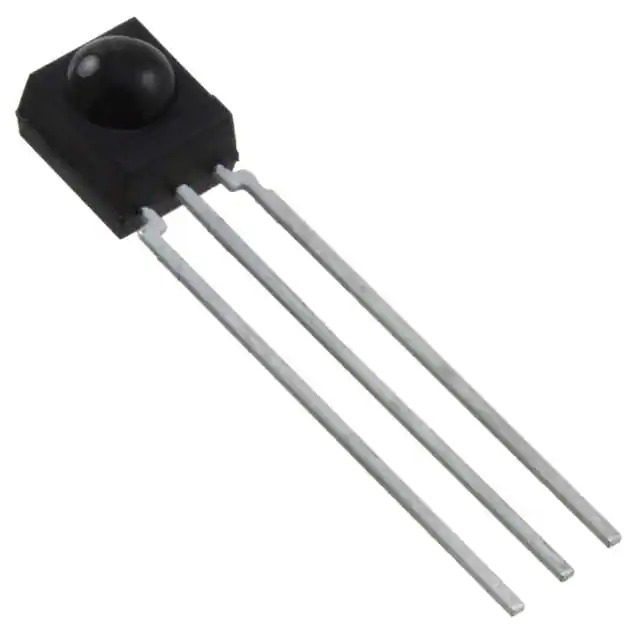

TSDP34156 Vishay
Same model may have multiple batches, images only for reference.

TSDP34156

Part No TSDP34156
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SENSOR REMOTE REC 57.6KHZ 35M
Datasheet
TSDP34156 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay Semiconductor Opto Division
Series -
Package Bulk
Product Status Active
Sensing Distance 35m
B.P.F. Center Frequency 57.6kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 350 µA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSDP34156
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 1371615-TSDP34156
Ultra Librarian 3D Model Ultra Librarian TSDP34156 CAD Model

Description

The TSDP34156 is a remote receiver photo detector from Vishay Semiconductor Opto Division.

  • Application: Optical Sensing
  • Operating Temperature: -25°C to 85°C
  • Sensing Distance: 35m
  • B.P.F. Center Frequency: 57.6kHz
  • Supply Voltage: 2.5V to 5.5V
  • Current Consumption: 350µA
  • Mounting Type: Through Hole
  • Package: Bulk
  • Product Status: Active
  • REACH Compliance: REACH Unaffected
