Same model may have multiple batches, images only for reference.

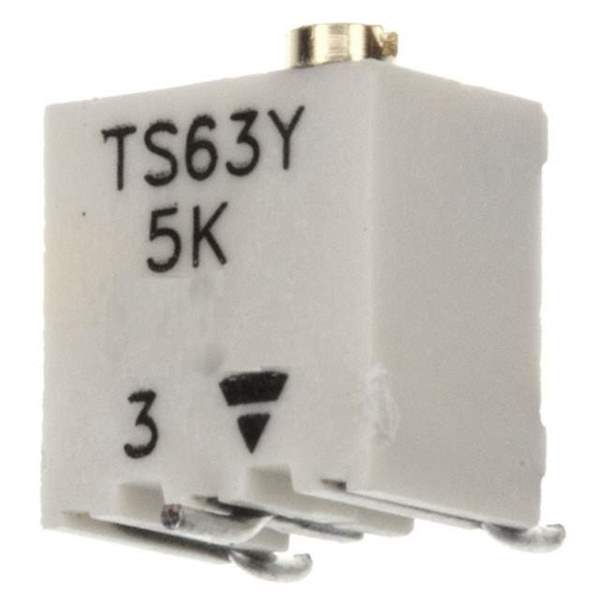

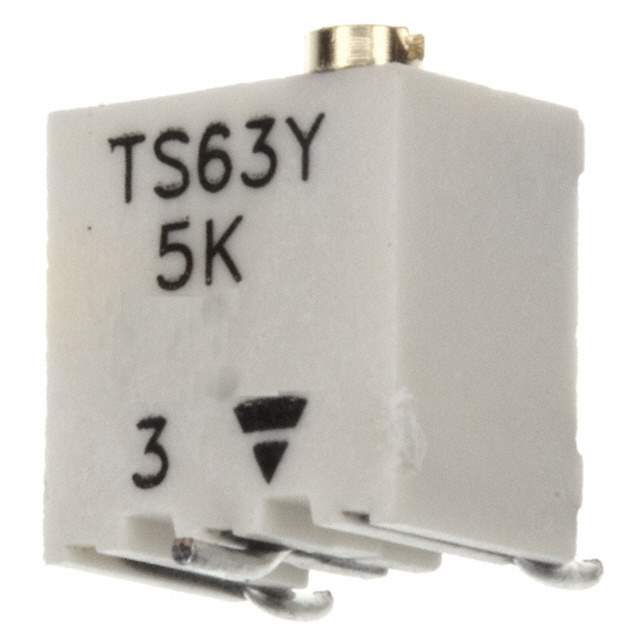

TS63Y502KR10 Real Image
Same model may have multiple batches, images only for reference.

TS63Y502KR10

Part No TS63Y502KR10
Manufacturer Vishay
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W GW TOP ADJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Vishay Sfernice
Packaging Reel
Resistance 5 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 15
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Parts Dimension Rectangular - 0.270" x 0.197" Face x 0.270" H (6.85mm x 5.00mm x 6.85mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 712721-TS63Y502KR10
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TS63Y502KR10 CAD Model

Description

The TS63Y502KR10 is a potentiometer from Vishay Sfernice.

  • Category: Variable Resistors
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 15
  • Adjustment Type: Top Adjustment
  • Resistive Material: Cermet
  • Resistance: 5 kOhms
  • Packaging: Reel
  • Termination Style: Gull Wing
  • Mounting Style: SMD
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Power: 0.25W, 1/4W
  • Parts Dimension: Rectangular - 0.270" x 0.197" Face x 0.270" H (6.85mm x 5.00mm x 6.85mm)
