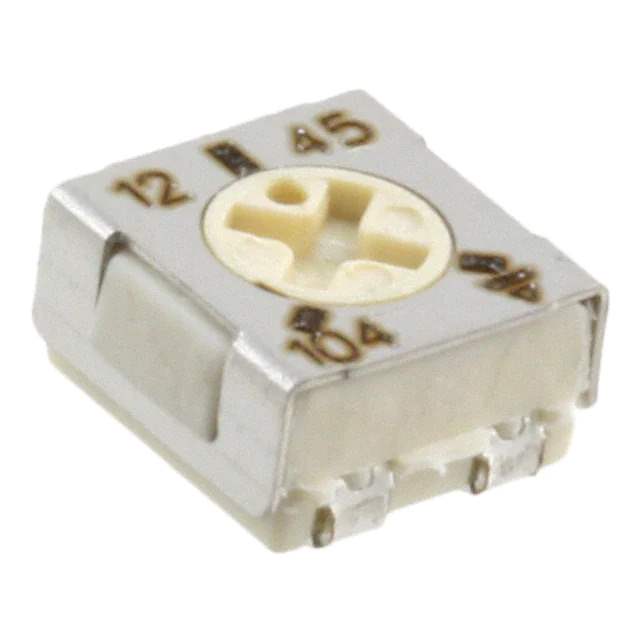

Same model may have multiple batches, images only for reference.

TS53YJ501MR10

Name: TS53YJ501MR10
Brand: Vishay
SKU: 901214
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TS53YJ501MR10
Manufacturer	Vishay
Catalog	Trimmer Potentiometers
Description	TRIMMER 500 OHM 0.25W J LEAD TOP / 500 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	TS53YJ501MR10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Vishay
Series	TS53
Package	Tape & Reel
Product Status	Active
Resistance	500 Ohms
Power (Watts)	0.25W, 1/4W
Tolerance	±20%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Surface Mount
Termination Style	J Lead
Size / Dimension	Square - 0.197" x 0.197" Face (5.00mm x 5.00mm)
Standard Package	500 pcs
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8050
Win Source Part Number	901214-TS53YJ501MR10
Ultra Librarian 3D Model	Ultra Librarian TS53YJ501MR10 CAD Model

Description

The TS53YJ501MR10 is a trimmer potentiometer from Vishay.

Category: Potentiometers, Variable Resistors - Trimmer Potentiometers
Termination Style: J Lead
Package: Tape and Reel
Size: 0.197" x 0.197" face (5.00mm x 5.00mm)
Standard Package: 500 pieces
Tolerance: ±20%
Temperature Coefficient: ±100ppm/°C
Power Rating: 0.25W (1/4W)
Turns: 1
Adjustment: Top
Resistive Material: Cermet
Resistance: 500 Ohms
Operating Temperature: -55°C to 150°C
ECCN: EAR99
