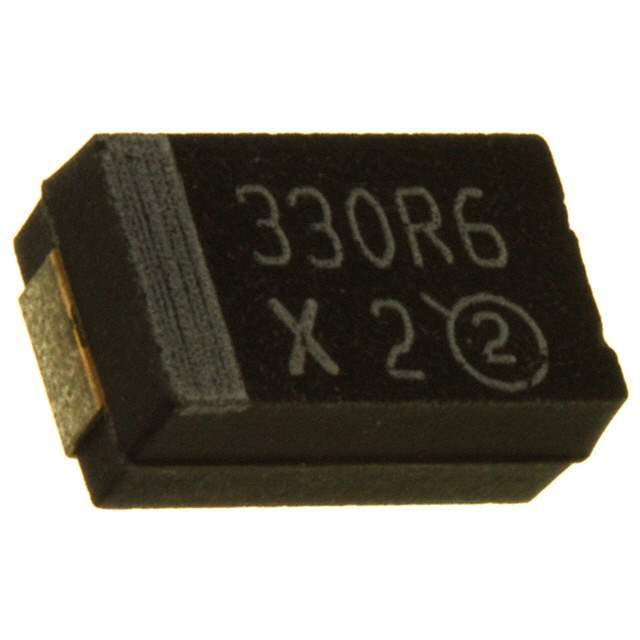

TR3D686K020C0115 Real Image
Same model may have multiple batches, images only for reference.

TR3D686K020C0115

Part No TR3D686K020C0115
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 68UF 10% 20V 2917 / 68 µF Molded Tantalum Capacitors 20 V 2917 (7343 Metric) 115mOhm
Datasheet
TR3D686K020C0115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, TR3
Package Tape & Reel
Capacitance 68 µF
Tolerance ±10%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 115mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1340218-TR3D686K020C0115
Ultra Librarian 3D Model Ultra Librarian TR3D686K020C0115 CAD Model

Description

The TR3D686K020C0115 is a molded tantalum capacitor from Vishay Sprague.

  • Series: TANTAMOUNT®, TR3 series
  • Capacitance: 68 µF with a tolerance of ±10%
  • Voltage Rating: 20V
  • ESR (Equivalent Series Resistance): 115mOhm
  • Packaging: tape and reel
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.122" (3.10mm)
  • Manufacturer Size Code: D
  • Mounting Type: surface mountable
  • Operating Temperature: -55°C to 125°C
