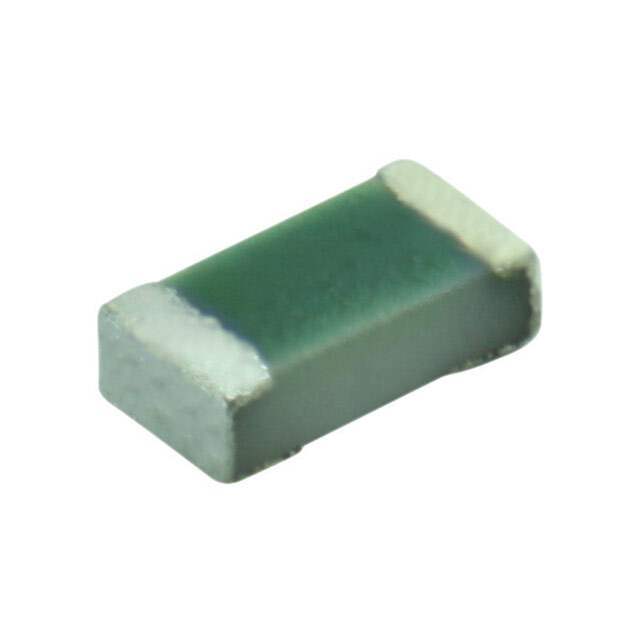

TNPW040224K9BEED Vishay Dale TNPW040224K9BEED Vishay Dale
Same model may have multiple batches, images only for reference.
TNPW040224K9BEED Vishay Dale TNPW040224K9BEED Vishay Dale
TNPW040224K9BEED Vishay Dale TNPW040224K9BEED Vishay Dale
Same model may have multiple batches, images only for reference.

TNPW040224K9BEED

Part No TNPW040224K9BEED
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 24.9K OHM 0.1% 0.13W 0402
Datasheet
TNPW040224K9BEED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 24.9 kOhms
Tolerance ±0.1%
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 175°C
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Ultra Librarian 3D Model Ultra Librarian TNPW040224K9BEED CAD Model

Description

Vishay Automotive Grade TNPW e3 thin film flat chip resistors are the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. Typical applications include automotive, industrial, test and measuring equipment, and medical equipment.
