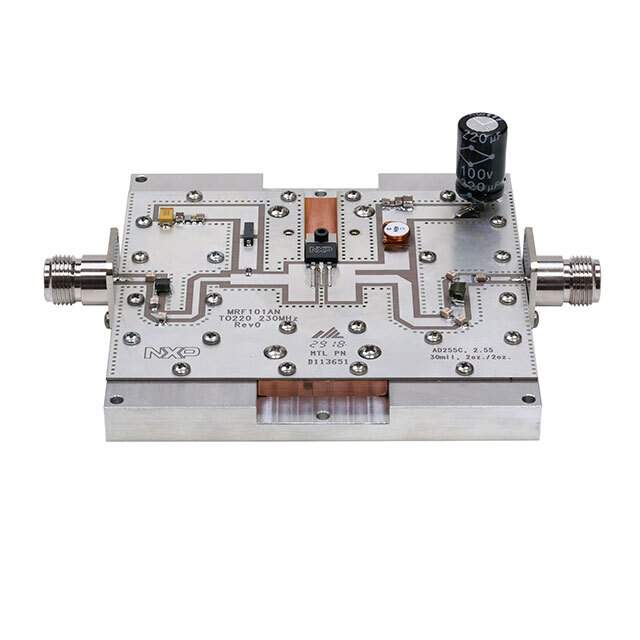

The MRF101AN-230MHz from NXP Semiconductors is a state-of-the-art RF power LDMOS transistor designed for a broad array of applications. This high-performance device is tailored for use in commercial, industrial, and amateur radio applications, particularly excelling in the VHF frequency range up to 230 MHz.

Key Features

• Frequency Range: The MRF101AN operates efficiently at a frequency range up to 230MHz, making it versatile for various RF applications.
• High Power: With an output power of 100W CW, this transistor can deliver the power needed for demanding applications.
• High Efficiency: The device boasts an excellent efficiency of 72.5%, ensuring less power is wasted as heat and more is converted into useful RF energy.
• Integrated ESD Protection: The built-in ESD protection enhances the reliability and longevity of the transistor, safeguarding it from unexpected electrostatic discharges.
• Ruggedness: The MRF101AN is capable of withstanding a VSWR of 65:1 at 50V, making it robust against mismatches in the load.

Applications

The versatility of the MRF101AN-230MHz allows it to be used in a wide range of applications, including but not limited to:

• Industrial, Scientific, and Medical (ISM) applications
• Radio and VHF TV broadcast transmitters
• Amateur radio amplifiers
• Aerospace and defense communication systems

Technical Specifications

• Technology: LDMOS (Laterally Diffused Metal Oxide Semiconductor)
• Supply Voltage: 50V
• Gain: 24.3 dB
• Thermal Resistance: 0.81°C/W

With its robust construction, the MRF101AN-230MHz is an ideal choice for RF designers looking for a reliable and efficient power transistor. NXP's dedication to quality ensures that this component will deliver consistent performance and durability for any RF power application within its specified range.
