Same model may have multiple batches, images only for reference.

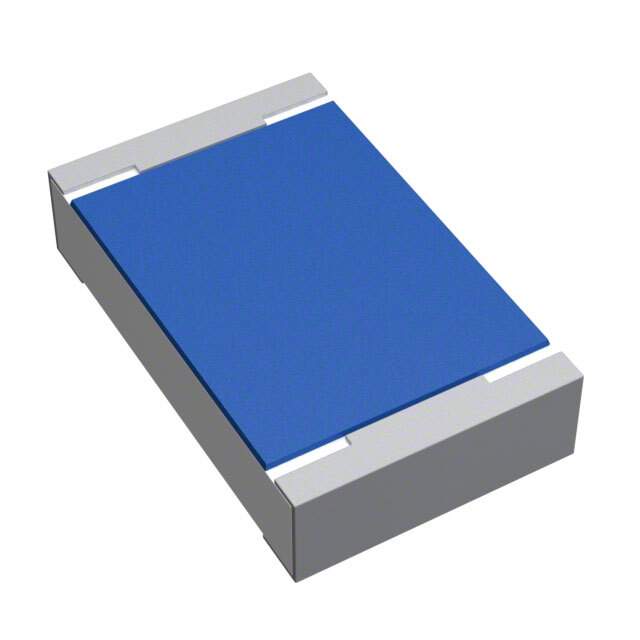

TNPU0805300KBZEN00 Real Image
Same model may have multiple batches, images only for reference.

TNPU0805300KBZEN00

Part No TNPU0805300KBZEN00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 300K OHM 0.1% 1/8W 0805 / 300 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
TNPU0805300KBZEN00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series TNPU e3
Package Tape & Reel (TR)
Resistance 300 kOhms
Tolerance ±0.1%
Power (Watts) 0.125W, 1/8W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 1,000
Win Source Part Number 1100635-TNPU0805300KBZEN00
Ultra Librarian 3D Model Ultra Librarian TNPU0805300KBZEN00 CAD Model

Description

The Vishay TNPU e3 is a chip resistor with a resistance of 300 kOhms and a power rating of 0.125W.

  • Resistance: 300 kOhms
  • Power Rating: 0.125W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±5ppm/°C
  • Application: surface mount
  • Package: 0805 (2012 Metric)
  • Features: anti-sulfur and moisture resistance
  • Rating: AEC-Q200
  • Supply and Demand: balanced
