Same model may have multiple batches, images only for reference.

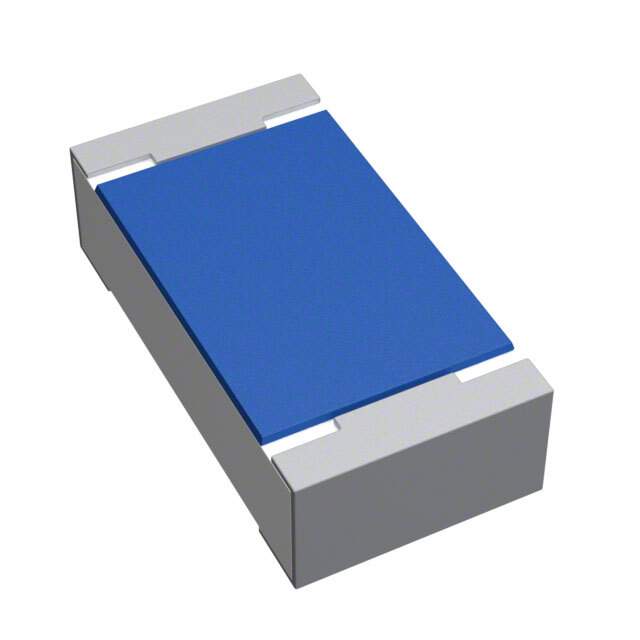

TNPU0603100KAZEN00 Real Image
Same model may have multiple batches, images only for reference.

TNPU0603100KAZEN00

Part No TNPU0603100KAZEN00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100KOHM 0.05% 1/10W 0603 / 100 kOhms ±0.05% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
TNPU0603100KAZEN00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series TNPU e3
Package Tape & Reel
Resistance 100 kOhms
Tolerance ±0.05%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Dimension 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names TNPU100KAADKR,TNPU100KAATR,TNP100KBDDKR-ND,TNP100KBDCT,TNP100KBDCT-ND,TNP100KBDTR,TNP100KBDTR-ND,TNPU100KAACT,TNP100KBDDKR
Standard Package 1,000
Win Source Part Number 1100632-TNPU0603100KAZEN00
Ultra Librarian 3D Model Ultra Librarian TNPU0603100KAZEN00 CAD Model

Description

The TNPU0603100KAZEN00 from Vishay Dale is a chip resistor that has a resistance of 100 kOhms and a power rating of 0.1W or 1/10W.

  • Resistance: 100 kOhms
  • Power Rating: 0.1W or 1/10W
  • Tolerance: ±0.05%
  • Temperature Coefficient: ±5ppm/°C
  • Composition: thin-film
  • Package/Case: 0603 (1608 Metric)
  • Height of Seated (max): 0.022" (0.55mm)
  • Terminations: 2
  • Series: TNPU e3
  • Features: anti-sulfur, automotive AEC-Q200, and moisture-resistant
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Packaging: tape and reel
  • Standard Package: 1,000
