Same model may have multiple batches, images only for reference.

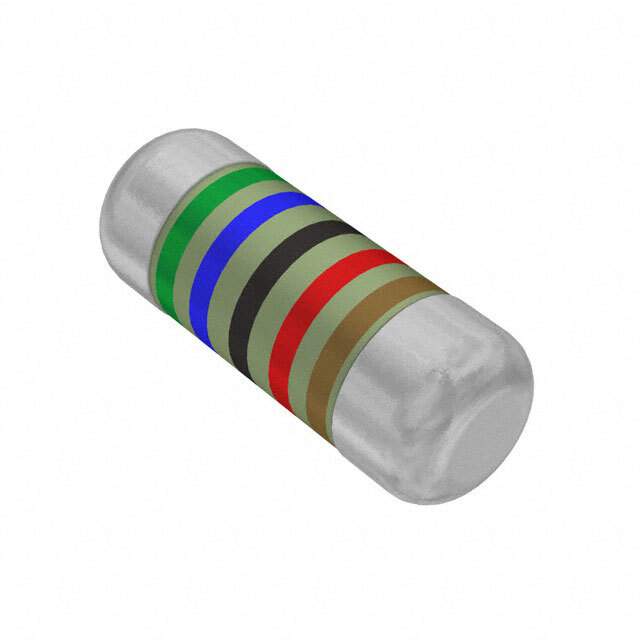

SMM02070C5602FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C5602FBP00

Part No SMM02070C5602FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 56K OHM 1% 1W MELF 0207
Datasheet
SMM02070C5602FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 34 Weeks
Features 56 kOhms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0207
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package MELF, 0207
Case / Package MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-SMM02070C5602FBP00CT, 749-SMM02070C5602FBP00DKR, 749-SMM02070C5602FBP00TR, SMM02070C5602FBP00-ND
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934380-SMM02070C5602FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C5602FBP00 CAD Model

Description

The Vishay SMM02070C5602FBP00 chip resistor is a high-quality component designed for use in a variety of electronic applications.

  • Resistance: 56 kOhms ±1%
  • Power Rating: 1W
  • Mounting: MELF, 0207 package
  • Category: Resistors
  • Temperature Range: -55°C to 155°C
  • Packaging: Reel package
  • Quantity per package: 1500
  • Estimated production lead time: 34 weeks
