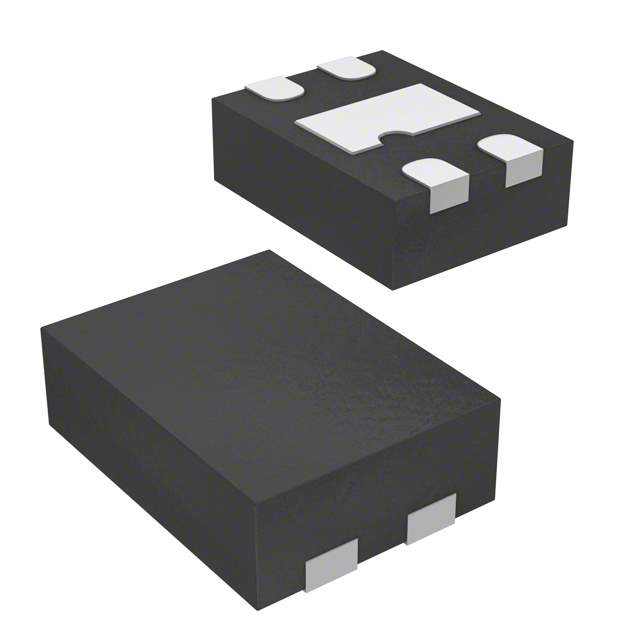

SIP4282ADNP3-T1GE4 Real Image
Same model may have multiple batches, images only for reference.

SIP4282ADNP3-T1GE4

Part No SIP4282ADNP3-T1GE4
Manufacturer Vishay
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH P-CHAN 1:1 4TDFN / 1.2 A Slew Rate Controlled Load Switch in PPAK SC75-6, and TDFN4 1.2 mm x 1.6 mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Siliconix
Packaging Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 1.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Maximum) 1.4A
Rds On (Typ) 350mOhm
Input Type Non-Inverting
Features Load Discharge, Slew Rate Controlled
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 4-UFDFN Exposed Pad
Supplier Device Package 4-TDFN (1.2x1.6)
Mounting Style Surface Mount
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806169-SIP4282ADNP3-T1GE4
Ultra Librarian 3D Model Ultra Librarian SIP4282ADNP3-T1GE4 CAD Model

Description

The Vishay Siliconix SIP4282ADNP3-T1GE4 is a load discharge, slew rate controlled P-channel high side switch.

  • Output Configuration: 1.5V ~ 5.5V
  • Rds On (Typ): 350mOhm
  • Current Output: 1.4A
  • Mounting: Surface Mount
  • Package: 4-UFDFN Exposed Pad
  • Temperature Range: -40°C to 125°C
  • Manufacturer Pack Quantity: 3,000
  • ECCN: EAR99
  • Popularity: Medium
