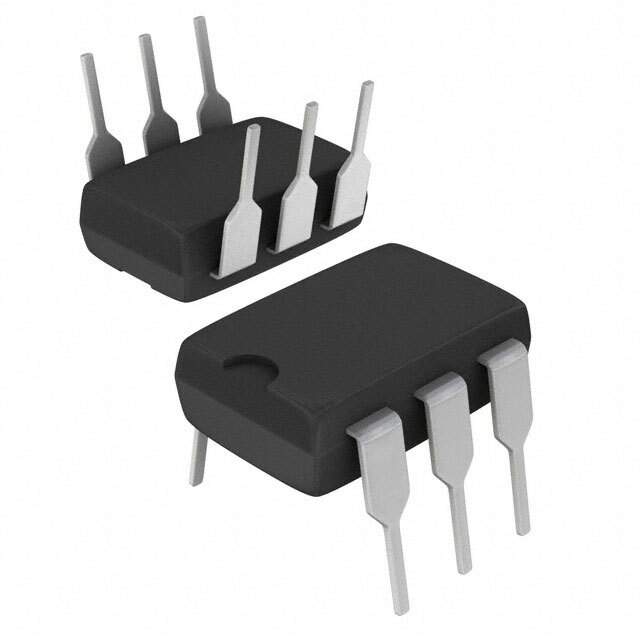

SFH601-1X001 Real Image
Same model may have multiple batches, images only for reference.

SFH601-1X001

Part No SFH601-1X001
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 6DIP  /  Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Datasheet
SFH601-1X001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tube
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 40% @ 10mA
Current Transfer Ratio (Max) 80% @ 10mA
Turn On / Turn Off Time (Typ) 3µs, 2.3µs
Rise / Fall Time (Typ) 2µs, 2µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 100V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number SFH601
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1243388-SFH601-1X001
Ultra Librarian 3D Model Ultra Librarian SFH601-1X001 CAD Model

Description

The SFH601-1X001 optoisolator from Vishay Semiconductor Opto Division is an excellent solution for various electronic devices that require isolation.

  • Output Type: Photovoltaic, Transistor with Base
  • Input Type: DC
  • Voltage Isolation: 5300Vrms
  • Current Transfer Ratio: 40% @ 10mA
  • Package Type: 6-DIP (0.300", 7.62mm)
  • Mounting Type: Through-Hole
  • Supply and Demand Status: Balanced
  • Package Quantity: 2000 units
