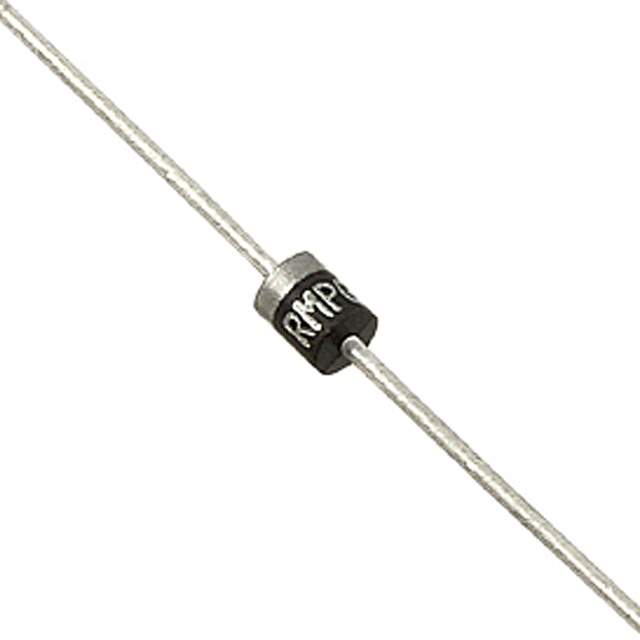

SB030-E3/53 Real Image
Same model may have multiple batches, images only for reference.

SB030-E3/53

Part No SB030-E3/53
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SB030-E3/53 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Box (TB)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 600mA
Voltage - Forward (Vf) (Max) @ If 550 mV @ 600 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 30 V
Mounting Type Through Hole
Package / Case MPG06, Axial
Supplier Device Package MPG06
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SB030
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281904-SB030-E3/53
Ultra Librarian 3D Model Ultra Librarian SB030-E3/53 CAD Model

Description

The Vishay General Semiconductor - Diodes Division SB030 is a Schottky diode that is designed to provide fast recovery and high efficiency.

  • Voltage - DC Reverse (Vr) (Max): 30 V
  • Current - Average Rectified (Io): 600mA
  • Win Source Part Number: 1281904-SB030-E3/53
  • Note: This product is now obsolete.
