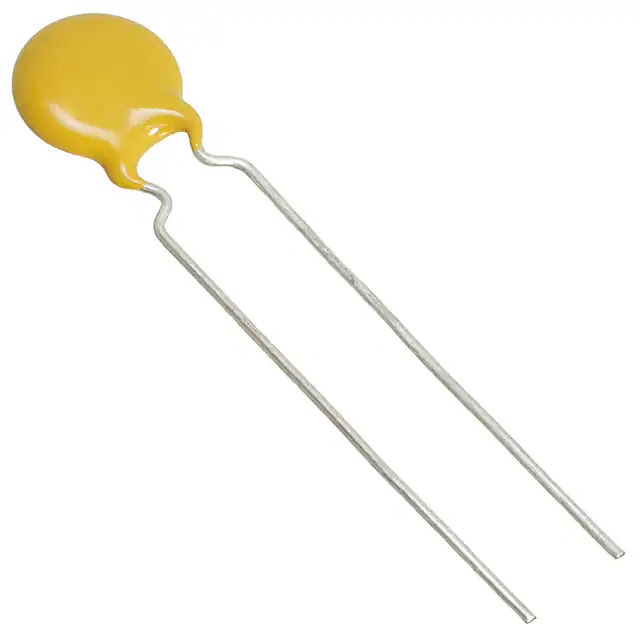

Same model may have multiple batches, images only for reference.
S102K29Y5PN6TJ5R Vishay
Same model may have multiple batches, images only for reference.

S102K29Y5PN6TJ5R

Part No S102K29Y5PN6TJ5R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 1000PF 1KV Y5P RADIAL / 1000 pF ±10% 1000V (1kV) Ceramic Capacitor Y5P (B) Radial, Disc
Datasheet
S102K29Y5PN6TJ5R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Tape & Reel (TR)
Product Status Active
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient Y5P (B)
Temperature Range - Operating -30°C ~ 125°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1359924-S102K29Y5PN6TJ5R
Ultra Librarian 3D Model Ultra Librarian S102K29Y5PN6TJ5R CAD Model

Description

The 1359924-S102K29Y5PN6TJ5R is a ceramic capacitor from Vishay Beyschlag/Draloric/BC Components' S series.

  • Series: S
  • Application: General-Purpose
  • Capacitance: 1000 pF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Mounting: Through-Hole
  • Size: 0.295" Dia (7.50mm)
  • Height: 0.453" (11.50mm)
  • Operating Temperature: -30°C to 125°C
  • Lead Spacing: 0.197" (5.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
