Same model may have multiple batches, images only for reference.

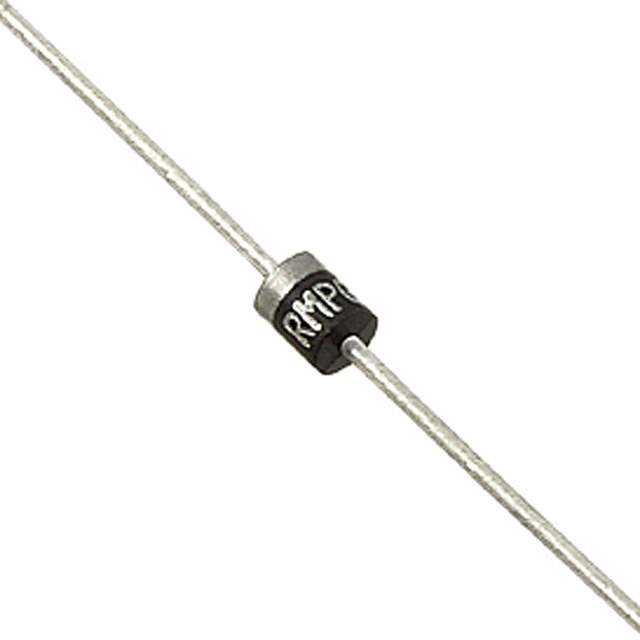

RMPG06J-E3/54 Real Image
Same model may have multiple batches, images only for reference.

RMPG06J-E3/54

Part No RMPG06J-E3/54
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 1A MPG06  /  Diode Standard 600 V 1A Through Hole MPG06
Datasheet
RMPG06J-E3/54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR),Cut Tape (CT)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 200 ns
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 6.6pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case MPG06, Axial
Supplier Device Package MPG06
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number RMPG06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names RMPG06J-E3/54GIDKR-ND,RMPG06J-E3/54GIDKRINACTIVE,RMPG06J-E3/54GICT,RMPG06J-E3/54GITR,RMPG06J-E3/54GIDKR,RMPG06J-E3/54-ND
Standard Package 5,500
Win Source Part Number 1088692-RMPG06J-E3/54
Ultra Librarian 3D Model Ultra Librarian RMPG06J-E3/54 CAD Model

Description

The Vishay General Semiconductor - Diodes Division RMPG06J-E3/54 is a fast recovery standard diode that operates in the temperature range of -55°C to 150°C.

  • Operating Temperature: -55°C to 150°C
  • Maximum DC Reverse Voltage: 600V
  • Forward Voltage: 1.3V @ 1A
  • Average Rectified Current: 1A
  • Reverse Leakage Current: 5μA @ 600V
  • Series: MPG06
  • Mounting Type: Through Hole
  • Packaging: Tape and Reel (TR)
  • Standard Package: 5,500
  • Reverse Recovery Time: 200ns
  • Capacitance: 6.6pF @ 4V, 1MHz
  • ECCN: EAR99
  • REACH: Unaffected
  • Mfr: Vishay General Semiconductor - Diodes Division
