Same model may have multiple batches, images only for reference.

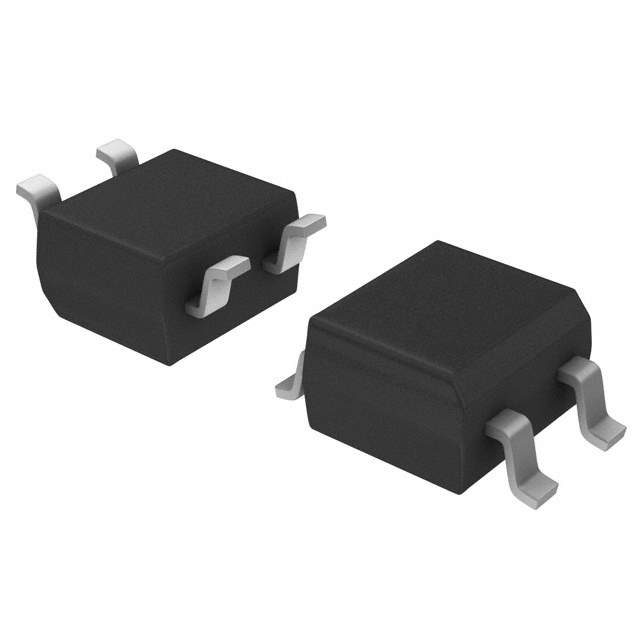

RMB4S-E3/80 Real Image
Same model may have multiple batches, images only for reference.

RMB4S-E3/80

Part No RMB4S-E3/80
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE 0.5A 400V 150NS MBS
Datasheet
RMB4S-E3/80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-269AA (MBS)
Win Source Part Number 1092431-RMB4S-E3/80
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RMB4S-E3/80 CAD Model

Description

The RMB4S-E3/80 is a standard three-phase diode from Vishay.

  • Manufacturer: Vishay
  • Type: Three-phase diode
  • Package: TO-269AA (MBS)
  • Mounting: SMD (SMT)
  • Average Rectified Current: 500mA
  • Peak Reverse Voltage: 400V
  • Forward Voltage: 1.25V @ 400mA
  • Reverse Leakage Current: 5μA @ 400V
  • Status: Active
  • Supply and Demand Status: Good
