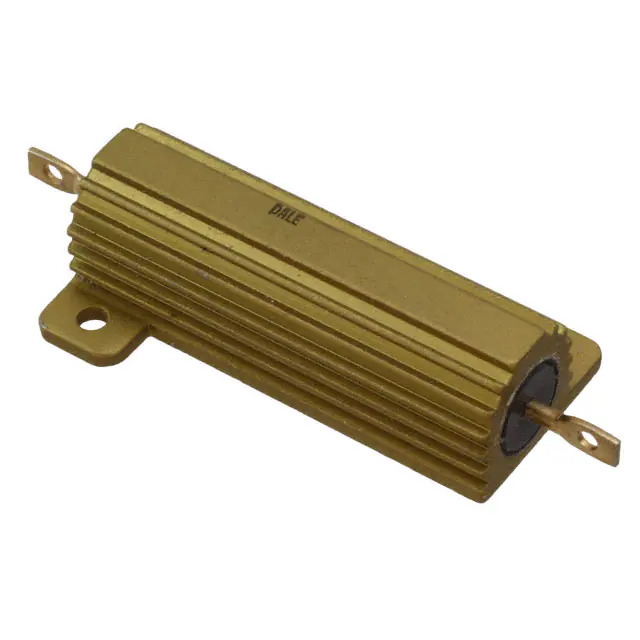

Same model may have multiple batches, images only for reference.
RH0505R000FE02 Vishay
Same model may have multiple batches, images only for reference.

RH0505R000FE02

Part No RH0505R000FE02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 5 OHM 1% 50W
Datasheet
RH0505R000FE02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Vishay Dale
Series RH
Package Bulk
Product Status Active
Resistance 5 Ohms
Tolerance ±1%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.968" L x 1.140" W (49.99mm x 28.96mm)
Height - Seated (Max) 0.625" (15.87mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Failure Rate -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1373940-RH0505R000FE02
Ultra Librarian 3D Model Ultra Librarian RH0505R000FE02 CAD Model

Description

The RH0505R000FE02 is a chassis mount resistor from Vishay Dale.

  • Resistance: 5 Ohms
  • Power Rating: 50W
  • Suitable for: High-power applications
  • Composition: Wirewound
  • Temperature Coefficient: ±50ppm/°C
  • Temperature Range: -55°C to 250°C
  • Feature: Moisture Resistant
  • Package: Axial, Box
  • Mounting Feature: Flanged
  • Suitable for: Industrial and automotive applications
  • Requirement: High power and stability
  • Status: Active
