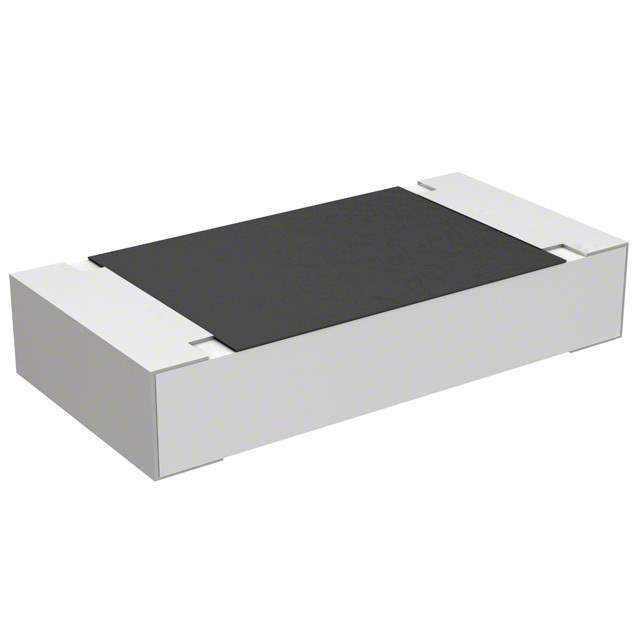

RCA12061M00JNEA Real Image
Same model may have multiple batches, images only for reference.

RCA12061M00JNEA

Part No RCA12061M00JNEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 5% 1/4W 1206
Datasheet
RCA12061M00JNEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 1M
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 1206
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Win Source Part Number 1091609-RCA12061M00JNEA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RCA12061M00JNEA CAD Model

Description

The Vishay 1091609-RCA12061M00JNEA is a 1206 thick film resistor with a resistance of 1M ohms.

  • Resistance: 1M ohms
  • Power Rating: 0.25W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Features: Anti-sulfur and Automotive AEC-Q200
  • Seated Height: 0.024" (0.60mm)
  • Terminations: 2
  • Product Status: Active
  • Temperature Range: -55°C to 155°C
  • Supply and Demand Status: Balanced
