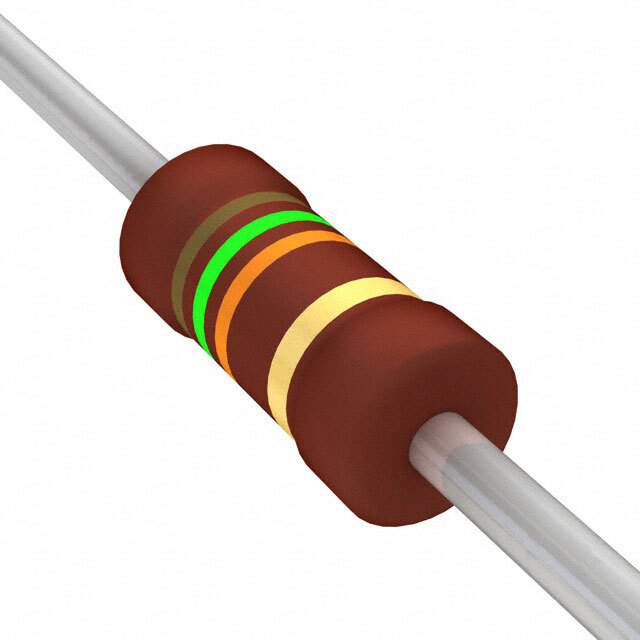

Same model may have multiple batches, images only for reference.

PR03000201502JAC00

Name: PR03000201502JAC00
Brand: Vishay
SKU: 992838
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PR03000201502JAC00
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 15K OHM 3W 5% AXIAL / 15 kOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Film
Datasheet	PR03000201502JAC00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR03
Package	Cut Tape (CT),Tape & Box (TB)
Resistance	15 kOhms
Tolerance	±5%
Power (Watts)	3W
Composition	Metal Film
Features	Flame Retardant Coating, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	BC15KW-3JTB,5093NW15K00JA8AFX,BC15KW-3JCTINACTIVE,BC15KW-3JCT,PPC15KW-3JCT,5093NW15K00J,PPC15KW-3JTB-NDR,BC15KW-3JTB-ND,PPC15KW-3JCT-NDR,232219514153,BC15KW-3JTBINACTIVE,5093NW15K00JBC,BC15KW-3JCT-ND,PPC15KW-3JTB,2322 195 14153
Standard Package	500
Win Source Part Number	992838-PR03000201502JAC00
Ultra Librarian 3D Model	Ultra Librarian PR03000201502JAC00 CAD Model

Alternative Products

Description

The PR03000201502JAC00 from Vishay Beyschlag/Draloric/BC Components is a through-hole resistor available at Win Source.

Manufacturer: Vishay Beyschlag/Draloric/BC Components
Availability: Win Source
Packages: Cut tape (CT) and tape & box (TB)
Height: 0.657”
Diameter: 0.205”
Tolerance: ±5%
Temperature Coefficient: ±250ppm/°C
Power Rating: 3W
Resistance: 15 kOhms
REACH: Not affected
Temperature Range: -55°C to 155°C
