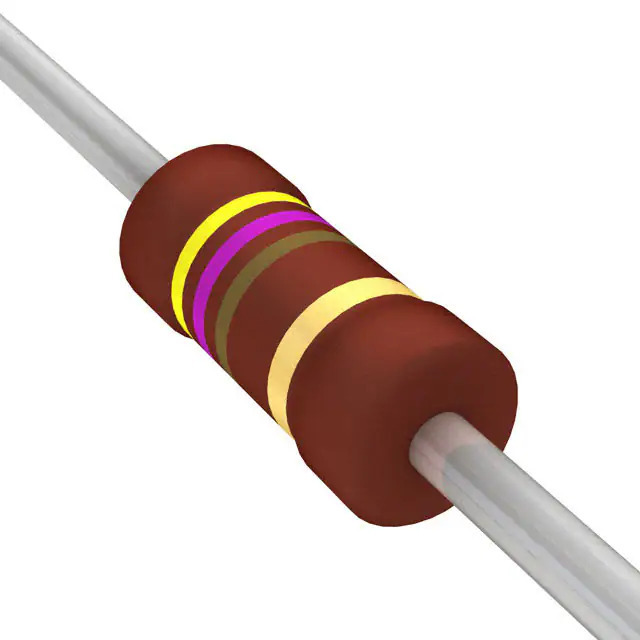

Same model may have multiple batches, images only for reference.

PR02000204700JA100

Name: PR02000204700JA100
Brand: Vishay
SKU: 1374880
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PR02000204700JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 470 OHM 5% 2W AXIAL
Datasheet	PR02000204700JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR02
Product Status	Active
Resistance	470 Ohms
Tolerance	±5%
Power (Watts)	2W
Composition	Metal Film
Features	Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374880-PR02000204700JA100
Ultra Librarian 3D Model	Ultra Librarian PR02000204700JA100 CAD Model

Alternative Products

Description

The PR02000204700JA100 is a through-hole resistor from Vishay Beyschlag/Draloric/BC Components.

Temperature Range: -55°C to 155°C
Resistance: 470 Ohms
Power Rating: 2W
Tolerance: ±5%
Resistor Type: Metal Film
Temperature Coefficient: ±250ppm/°C
Features: Flame Retardant, Fusible, Safety
Package: Axial
