PHT0805Y1000BGT Vishay Sfernice
Same model may have multiple batches, images only for reference.

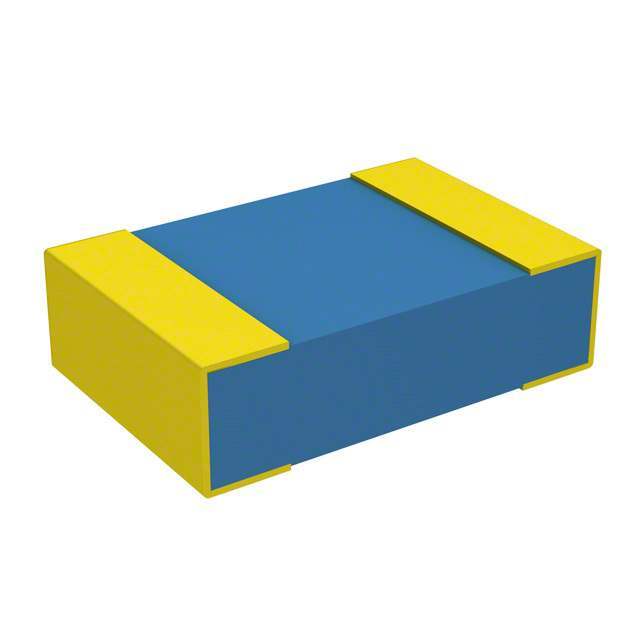

PHT0805Y1000BGT

Part No PHT0805Y1000BGT
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 0.1% 0.06W 0805
Datasheet
PHT0805Y1000BGT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Sfernice
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 100 Ohms
Tolerance ±0.1%
Composition Thin Film
Temperature Coefficient ±15ppm/°C
Operating Temperature -55°C ~ 215°C
Package / Case 0805 (2012 Metric)
Size / Dimension 0.075" L x 0.050" W (1.91mm x 1.27mm)
Height - Seated (Max) 0.018" (0.45mm)
Number of Terminations 2
Ultra Librarian 3D Model Ultra Librarian PHT0805Y1000BGT CAD Model

Description

FEATURES

• Operating temperature range: -55 °C; +215 °C

• Storage temperature: -55 °C; +230 °C

• Gold terminations (< 1 μm thick)

• 5 sizes available (0402, 0603, 0805, 1206, 2010); other sizes upon request

• Temperature coefficient down to 15 ppm (-55 °C; +215 °C)

• Tolerance down to 0.05 %

• Load life stability: 0.35 % max. after 2000 h at 220 °C (ambient) at Pn

• Shelf life stability: 0.7 % typ. (1 % max.) after 15 000 h at 230 °C

• SMD wraparound

• TCR remains constant after long term storage at 230 °C (15 000 h)
