Same model may have multiple batches, images only for reference.

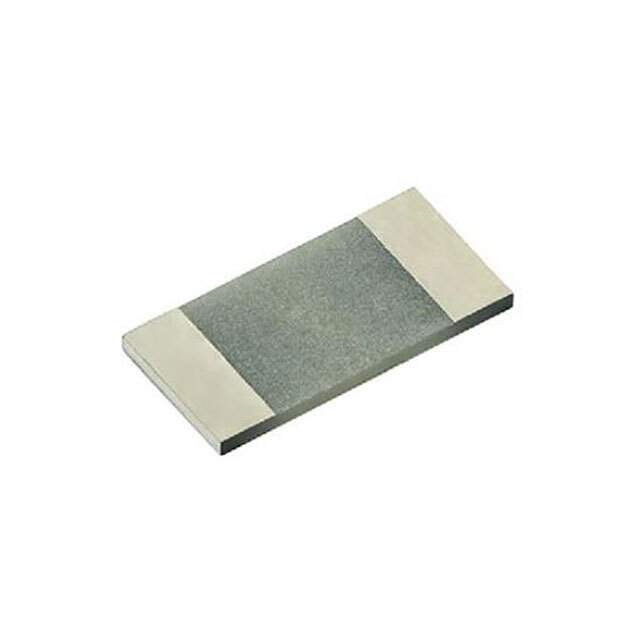

PCNM2512E49R9BST5 Real Image
Same model may have multiple batches, images only for reference.

PCNM2512E49R9BST5

Part No PCNM2512E49R9BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 49.9 OHM 0.1% 6W 2512 / 49.9 Ohms ±0.1% 6W Chip Resistor 2512 (6432 Metric) Flame Proof, Moisture Resistant, Non-Magnetic, Safety Thin Film
Datasheet
PCNM2512E49R9BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCNM
Package Tape & Reel
Resistance 49.9 Ohms
Tolerance ±0.1%
Power (Watts) 6W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Non-Magnetic, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.259" L x 0.124" W (6.58mm x 3.15mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341231-PCNM2512E49R9BST5
Ultra Librarian 3D Model Ultra Librarian PCNM2512E49R9BST5 CAD Model

Description

The PCNM2512E49R9BST5 is a thin film chip resistor that is designed for use in various electronic applications.

  • Features: Flame Proof, Moisture Resistant, Non-Magnetic, Safety
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.259" L x 0.124" W (6.58mm x 3.15mm)
  • Height - Seated (Max): 0.018" (0.46mm)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power (Watts): 6W
  • Resistance: 49.9 Ohms
  • Package / Case: 2512 (6432 Metric)
  • Operating Temperature: -55°C ~ 155°C
  • Composition: Thin Film
  • Manufacturer: Vishay Dale Thin Film
  • Mounting Type: Surface Mount
