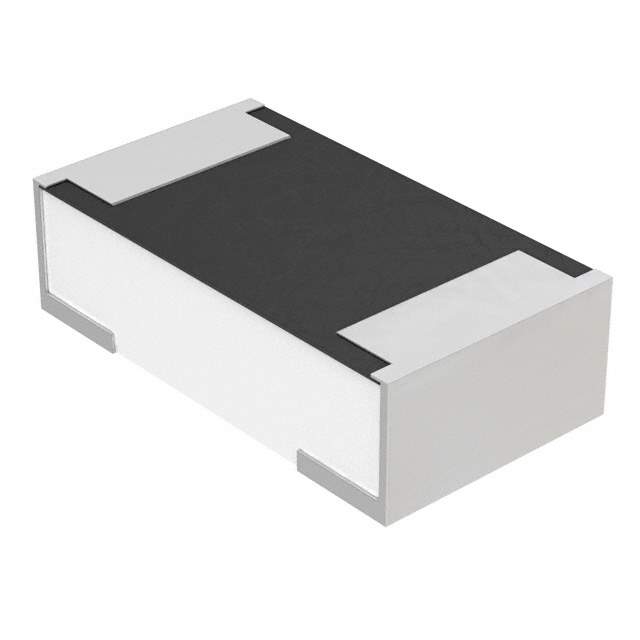

MFU0603FF00630P100 Real Image
Same model may have multiple batches, images only for reference.

MFU0603FF00630P100

Part No MFU0603FF00630P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MNT 630MA 32VDC 0603 / 630 mA AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
MFU0603FF00630P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 630 mA
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0014
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
DC Cold Resistance 0.4 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names MFU0603.63DKR,MFU0603.63CT,MFU0603.63TR
Standard Package 1,000
Win Source Part Number 1037992-MFU0603FF00630P100
Ultra Librarian 3D Model Ultra Librarian MFU0603FF00630P100 CAD Model

Description

The MFU0603FF00630P100 is a fast-blow fuse from Vishay Beyschlag/Draloric/BC Components.

  • Series: MFU
  • Packaging: Tape and Reel
  • Voltage Rating: 32V
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 0.0014
  • DC Cold Resistance: 0.4 Ohms
  • Standard Package: 1,000
  • Mounting Technology: Surface Mount Technology (SMT)
  • Package/Case: 0603 (1608 Metric)
  • Temperature Range: -55°C to 125°C
  • Alternative: 3414.0114.26, 3414.0113.26MFU0603FF00630P100., MFU0603.63DKR, MFU0603.63CT, and MFU0603.63TR
