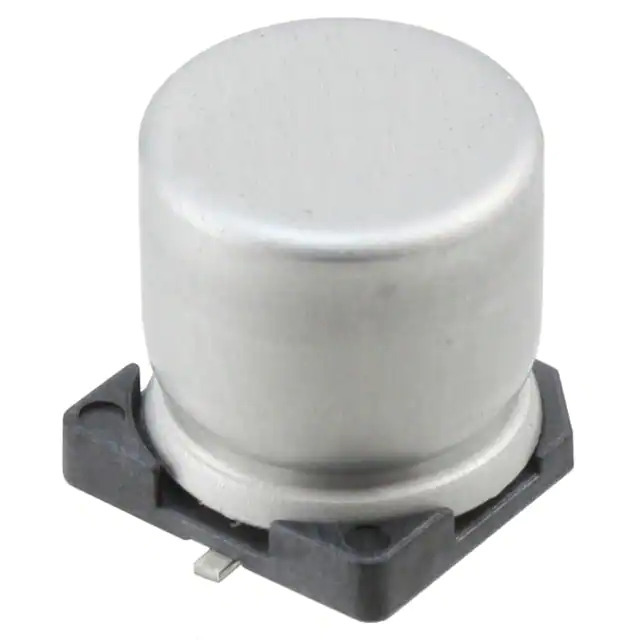

Same model may have multiple batches, images only for reference.
MAL214699906E3 Vishay
Same model may have multiple batches, images only for reference.

MAL214699906E3

Part No MAL214699906E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V SMD / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2500 Hrs @ 125°C
Datasheet
MAL214699906E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 146 CTI
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2500 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 252 mA @ 100 Hz
Ripple Current @ High Frequency 420 mA @ 100 kHz
Impedance 500 mOhms
Lead Spacing -
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Surface Mount Land Size 0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360387-MAL214699906E3
Ultra Librarian 3D Model Ultra Librarian MAL214699906E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 146 CTI is an aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 100V.

  • Series: 146 CTI
  • Capacitance: 100 µF
  • Voltage Rating: 100V
  • Operating Temperature: -55°C to 125°C
  • Application: Automotive
  • Package: Radial, can - SMD
  • Mounting Type: Surface Mounted
  • Size: 0.492" Dia (12.50mm)
  • Height: 0.650" (16.50mm)
  • Impedance: 500 mOhms
  • Ripple Current (Low Frequency): 252 mA @ a low frequency of 100 Hz
  • Ripple Current (High Frequency): 420 mA @ a high frequency of 100 kHz
  • AEC-Q200: Yes
  • Lifetime: 2500 hours @ 125°C
  • Polarization: Polarized
  • ECCN: EAR99
  • REACH: Unaffected
  • Surface Mount Land Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
