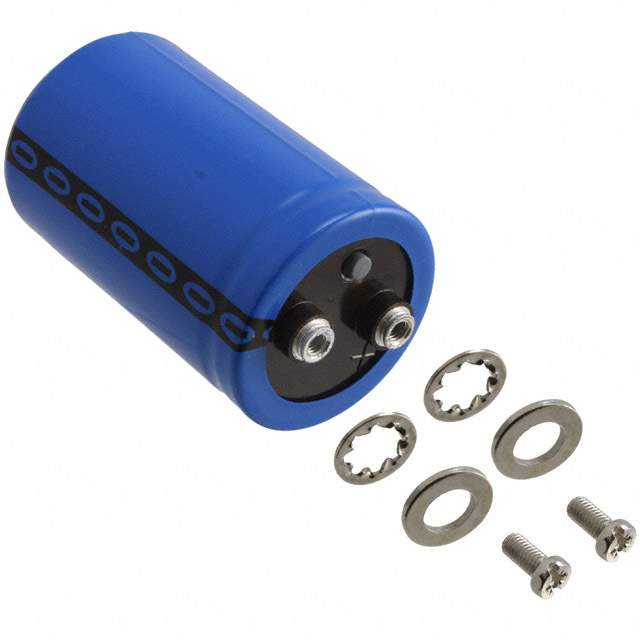

Same model may have multiple batches, images only for reference.

MAL210169103E3

Name: MAL210169103E3
Brand: Vishay
SKU: 760546
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL210169103E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 10000UF 20% 100V SCREW
Datasheet	MAL210169103E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay BC Components
Series	101 PHR-ST
Packaging	Bulk
Capacitance	10000μF
Tolerance	±20%
Voltage Rating	100V
ESR (Equivalent Series Resistance)	14 mOhm @ 100Hz
Lifetime @ Temp.	10000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	13.1A @ 100Hz
Impedance	9 mOhm
Lead Spacing	0.874" (22.20mm)
Dimension	1.969" Dia (50.00mm)
Height - Seated (Maximum)	4.362" (110.80mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	760546-MAL210169103E3
Popularity	Medium
Supply and Demand Status	Balance
Family Name	101 PHR-ST
Introduction Date	July 02, 2008
ECCN	EAR99
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian MAL210169103E3 CAD Model

Description

The 760546-MAL210169103E3 is a capacitor manufactured by Vishay BC Components.

Series: 101 PHR-ST
Packaging: Bulk
Capacitance: 10000μF
Voltage Rating: 100V
Polarization: Yes
Tolerance: ±20%
Operating Temperature: -40°C to 85°C
Lead Spacing: 0.874" (22.20mm)
Impedance: 9 mOhm
ESR: 14 mOhm @ 100Hz
Ripple Current - Low Frequency: 13.1A @ 100Hz
Lifetime: 10000 Hrs @ 85°C
Height: 4.362" (110.80mm)
Dimension: 1.969" Dia (50.00mm)
Applications: General
Alternative Parts: ALS31F103KE100, ALS41B103KF100, ALS41J103KF100
Supply and Demand Status: Balanced
Estimated EOL Date: 2026
